Microchip Technology SY58600UMGTR Differential Receiver
The SY58600U is a high-speed, differential receiver designed for industrial applications, capable of handling clocks up to 7GHz and data rates exceeding 10.7Gbps. It features Micrel's unique input termination architecture, supporting AC or DC-coupled signals as small as 200mV without the need for additional level shifting or termination resistors. The device offers 400mV CML outputs with fast rise/fall times under 60ps, operates on 2.5V or 3.3V supplies, and works reliably over a temperature range of -40°C to +85°C. Compact in an 8-pin MLF® package, it is ideal for backplane, SONET/SDN clock/data distribution, Gigabit Ethernet, and Fibre Channel systems.
Microchip Technology SY58600UMGTR Differential Receiver Specifications:
- Supply Voltage: 2.5V +5% or 3.3V +10%
- Operating Temperature: -40°C to +85°C
- Input Swing: 200mV (minimum)
- Output Swing: 400mV CML
- Maximum Data Rate: 10.7Gbps
- Maximum Clock Frequency: 7GHz
- Rise/Fall Time: <60ps
- Jitter: <1ps random, <10ps deterministic, <10ps total
- Package: 8-pin MLF® (MicroLeadFrame)
- Power Supply Currents: 45-65mA
- Input Resistance: 40-60Ω
- Differential Input Voltage Swing: 0.2V
- Input Termination: Internal 50Ω source termination
- Reverse Voltage Tolerance: Vcc = 2.375V–2.625V or 3.0V–3.6V
- Thermal Resistance: 93°C/W (Junction-to-Air), 32°C/W (Junction-to-Board)

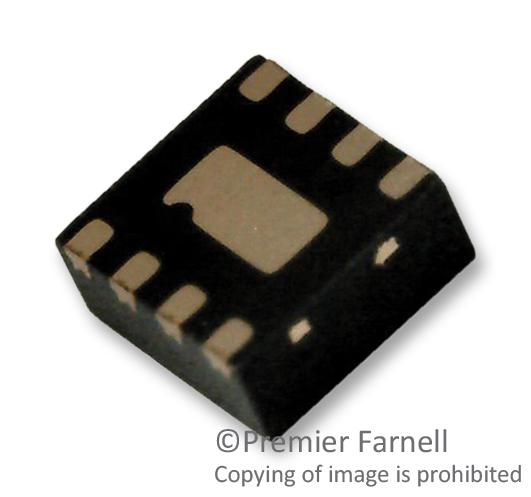

Buy the Micrel Series SY58600U Differential Receiver with Internal Termination: SY58600U
Enhance your high-speed data interfaces with the Micrel Series SY58600U differential receiver. Designed for demanding applications, it offers 10.7Gbps data rate handling, 7GHz clock capability, and ultra-fast rise times less than 60ps. Operating from 2.5V or 3.3V supplies, it supports AC or DC-coupled signals with input swing as low as 200mV. Its compact 8-pin MLF® package makes it ideal for backplane, Ethernet, SONET, and Fibre Channel systems that require reliable, low-jitter, high-speed performance.
Order your Micrel Series SY58600U high-speed differential receiver today and ensure reliable data distribution in your industrial, Ethernet, or optical systems.
Frequently Asked Questions
Where can I buy Microchip Technology SY58600UMGTR?
You can click on the BUY or RFQ button to purchase SY58600UMGTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part SY58600UMGTR?
You can download the SY58600UMGTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of SY58600UMGTR?
Microchip Technology
