Microchip Technology TC1303BDMDDBK1 Dual Output Regulator
The TC1303BDM-DDBK1 demonstration board is designed to evaluate Microchip's TC1303B dual output regulator, combining a 500mA buck regulator and a 300mA LDO with a power-good monitor. It features a fixed 2 MHz frequency under high load, shifting to pulse frequency modulation at lighter loads for efficiency. The LDO requires only a 1 µF capacitor. The compact design suits power management in portable, medical, and communication devices, providing reliable dual voltage regulation in a small footprint.
Microchip Technology TC1303BDMDDBK1 Dual Output Regulator Specifications:
- Input Voltage Range: +2.7V to +5.5V
- Buck Regulator Output Current: 0 mA to 500 mA
- LDO Output Current: 9 mA to 300 mA
- Switching Frequency: 2 MHz (fixed, heavy load), pulse frequency mode at light load
- Control: Power-good monitor, shutdown pins available
- Output Capacitors: 1 µF for LDO, other capacitors per datasheet recommendations
- Board Size: Compact, suitable for portable applications
- Application: Power management in portable devices, medical equipment, communication systems.

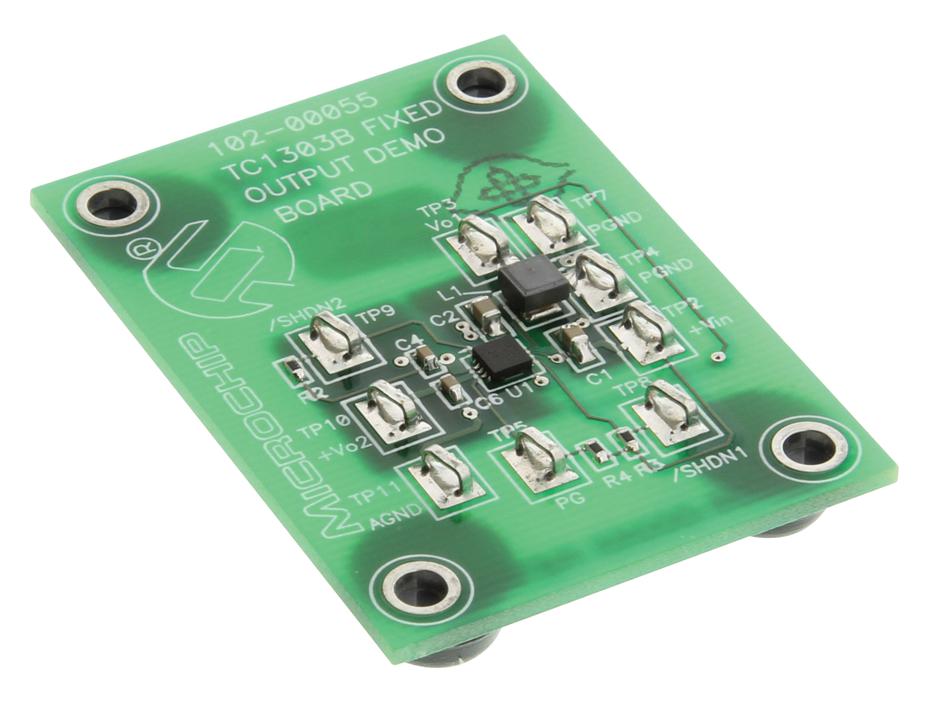

Buy the Microchip TC1303BDM– Reliable Dual Output Regulator for Industrial Applications
Enhance your power management setup with the Microchip TC1303BDM-DDBK1 demonstration board. This compact evaluation kit features a high-efficiency 500mA buck regulator and a 300mA LDO with a power-good indicator, ideal for portable and communication systems. Easy to use, it requires minimal external components, including just a 1 µF capacitor for the LDO. Perfect for engineers seeking a reliable, versatile power solution to evaluate or integrate into their designs for enhanced performance and stability.
Order your Microchip TC1303BDM-DDBK1 evaluation board today and experience efficient dual voltage regulation for your portable and communication projects.
Frequently Asked Questions
Where can I buy Microchip Technology TC1303BDMDDBK1?
You can click on the BUY or RFQ button to purchase TC1303BDMDDBK1 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC1303BDMDDBK1?
You can download the TC1303BDMDDBK1 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC1303BDMDDBK1?
Microchip Technology
