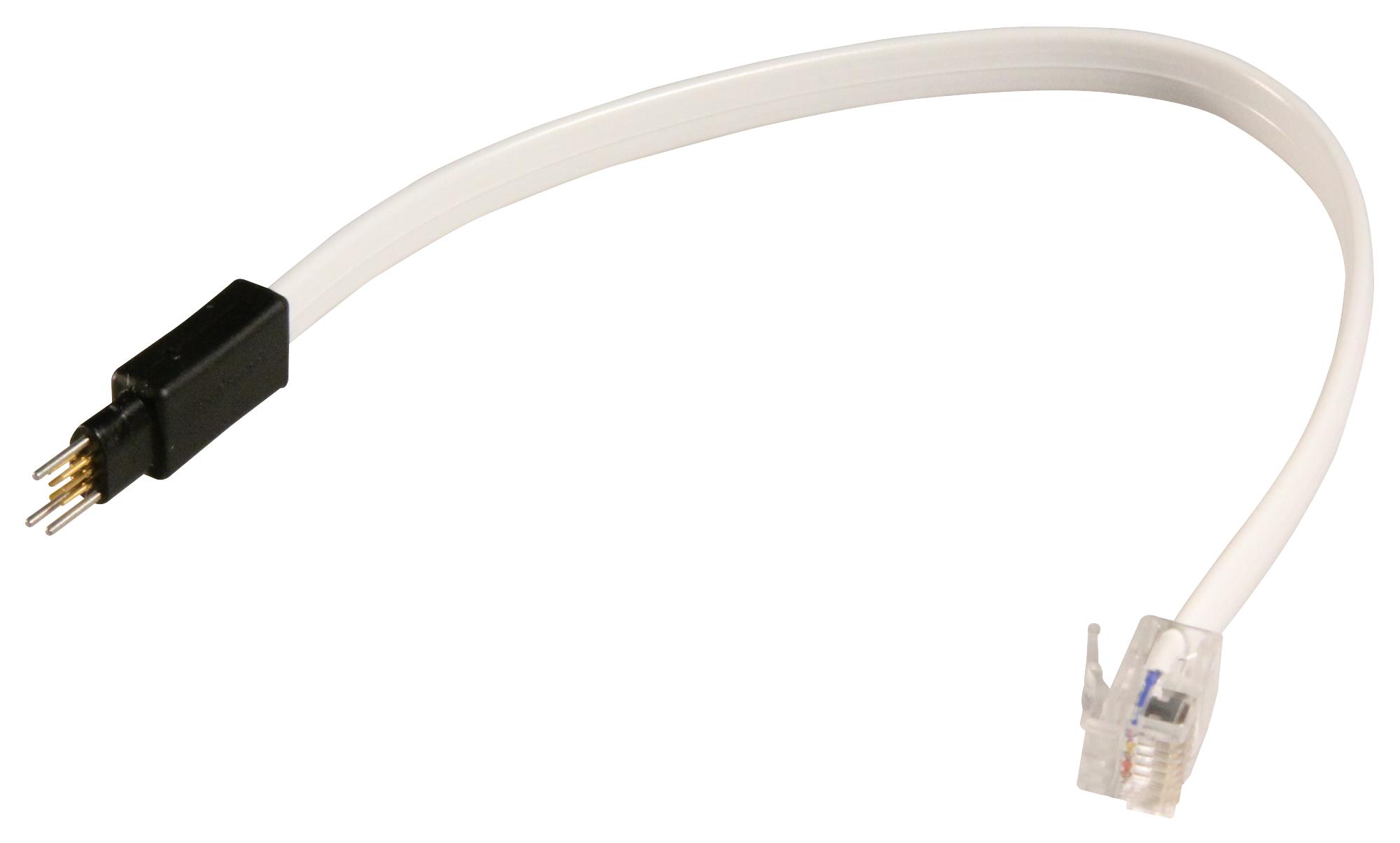

Microchip Technology TC2030MCPNL Programming Connector
The TC2030-MCP-NL is a compact Tag Connect in-circuit cable designed for reliable PCB connections in programming and debugging tasks. It features a high-quality connector with spring pins rated for 100,000 operations, ensuring durability and repeated use. The connector uses three steel alignment pins for precise placement, suitable for small footprints as tiny as 0.02 square inches. Compatible with MPLAB systems, it is ideal for production programming and embedded development in space-constrained environments. Its rugged design guarantees stable, secure connections, making it a perfect choice for engineers needing fast, dependable testing or programming solutions.
Microchip Technology TC2030MCPNL Programming Connector Specifications:
- Connector Type: Tag Connect in-circuit cable
- Pin Material: Steel spring pins rated for 100,000 operations
- Alignment: Three steel pins for precise positioning
- Pad Footprint: Suitable for footprints as small as 0.02 square inches
- Material: Rugged pogo-style spring pins
- Application: Production programming, embedded development, limited board space
- Compatibility: MPLAB REAL ICE, MPLAB ICD 3, MPLAB ICD 2
- Part Number: TC2030-MCP-NL
- Dimensions: Connector footprint designed for small PCB areas, approximately 0.02 in² footprint size
- Design: Patent-pending, no legs, contact pads, optional bottom layer use
Buy the Buy Tag Connect TC2030-MCP-NL Part Number TC2030-MCP-NL Online
Purchase the Tag Connect TC2030-MCP-NL connector online today and streamline your PCB programming or debugging process. This rugged, spring-pin-based connector offers high durability, ensuring up to 100,000 connection cycles. Its precision alignment pins and small footprint make it perfect for limited space on PCBs, while compatibility with popular MPLAB systems ensures broad usability. Reliable, fast, and easy to use, it provides an efficient solution for embedded development, production testing, or high-volume manufacturing, eliminating the need for traditional headers and simplifying your workflow.
Buy Tag Connect TC2030-MCP-NL now and experience unmatched reliability and quick, secure PCB programming for space-constrained projects.
Frequently Asked Questions
Where can I buy Microchip Technology TC2030MCPNL?
You can click on the BUY or RFQ button to purchase TC2030MCPNL from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC2030MCPNL?
You can download the TC2030MCPNL datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC2030MCPNL?
Microchip Technology
