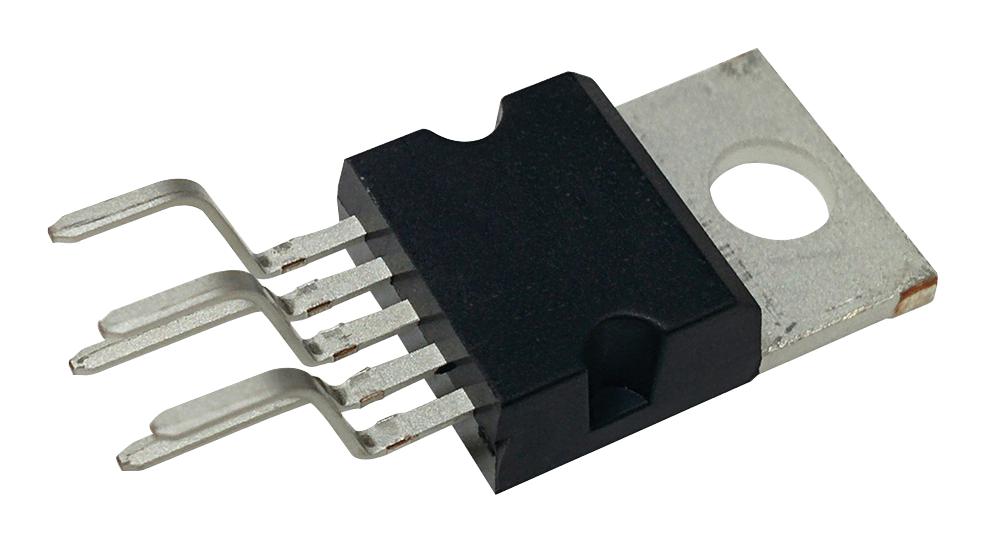

Microchip Technology TC4422AVAT High-Speed MOSFET Driver
The TC4422AVAT is a high-speed, 5-pin MOSFET driver ideal for local power switching, signal initiation, and motor control applications. It offers matched rise and fall times, high maximum output current of 10A, and low output impedance of 800mΩ, ensuring reliable and efficient switching of large MOSFETs and IGBTs. The device features excellent immunity to upset conditions, including ground bounce up to 5V and negative input swings up to 5V. With low supply current of about 450μA at high logic levels, it maintains efficient operation. It is suitable for automation, automotive, test equipment, and high-current switching designs requiring rugged, fast, and efficient MOSFET drivers.
Microchip Technology TC4422AVAT High-Speed MOSFET Driver Specifications:
- Peak Output Current: 10A (typ.)
- Output Stage: 4.5V to 18V
- Matched Rise and Fall Times: 15 ns with 4,700 pF load; 135 ns with 47,000 pF load
- Low Supply Current: 130 pA with logic ‘1’, 33 yA with logic ‘0’
- Output Impedance: 1.29 (typ.)
- Maximum Continuous Output Current: 2A
- Drive Capability: Large MOSFETs and IGBTs
- Reverse Current Handling: Up to 1.5A
- Propagation Delays: 42 ns (typ.)
- Operating Voltage Range: 4.5V to 18V
- Latch-up Protection: Yes
- Electrostatic Discharge Protection: Up to 4kV
- Package Options: 8-Pin DFN, TO-220, SOIC, PDIP
- Temperature Range: -40°C to +125°C
- Ground Bounce Tolerance: Up to 5V
- Input Voltage Compatibility: TTL/CMOS, up to 5V negative swings
- Applications: PWM signal control, motor and solenoid driver, local power switch, high-current line driver
Buy the Microchip TC4422AVAT – Reliable MOSFET Driver for Industrial Applications
Enhance your power electronics with the TC4422AVAT, a high-speed MOSFET driver capable of delivering up to 10A peak current. Designed for local power switching, motor control, and signal initiation, this device offers matched rise and fall times, low output impedance, and excellent immunity to ground bounce and negative swings. Its rugged construction and low supply current make it ideal for automotive, industrial, and automation applications. Buy online now to ensure reliable, fast, and efficient switching performance in your next project.
Order your Microchip TC4422AVAT high-speed MOSFET driver today and equip your projects with robust, fast, and efficient power switching solutions.
