Microchip Technology TC4422CPA High-Speed MOSFET Driver
The TC4422 is a high-speed, high-current MOSFET driver capable of driving large MOSFETs and IGBTs with peak currents up to 9A. It features TTL/CMOS compatibility on the input, low output impedance, fast switching times (approximately 60 ns rise and fall times), and operates over a wide supply voltage range of 4.5V to 18V. The device includes protections such as latch-up immunity and reverse current withstand. Its compact 8-pin PDIP package makes it suitable for high-current switching, motor driving, line drivers, and pulse generator applications, ensuring reliable performance with minimal power dissipation.
Microchip Technology TC4422CPA High-Speed MOSFET Driver Specifications:
- Supply Voltage: 4.5V to 18V
- Peak Output Current: 9A
- Continuous Output Current: 2A Max
- Rise and Fall Times: 60 ns (typical)
- Output Resistance: High - 1.4Ω, Low - 0.9Ω (typical)
- Input Voltage: High for '1' ≥ 2.4V, Low for '0' ≤ 1.3V
- Input Current: -10 to +10 nA
- Power Supply Current: 0.2 mA (typical)
- Operating Temperature Range: -40°C to +85°C
- Package: 8-Pin PDIP
- Electrostatic Discharge Protection: Up to 4 kV
- Switching Times: Approximately 60 ns (rise and fall times)
- Reverse Current Withstanding: Up to 1.5A
- Latch-Up Immunity: Up to 1.5A
- Thermal Resistance (PDIP): 71°C/W

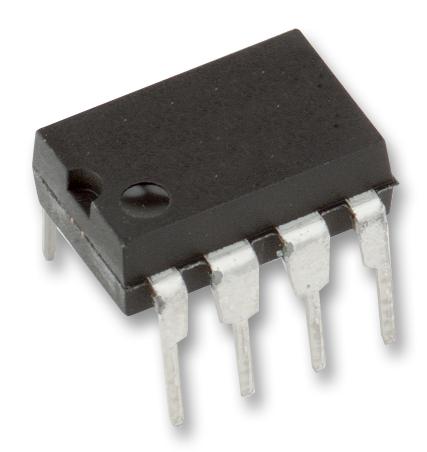

Buy the Buy Microchip TC4422 Part Number TC4422CPA Online
Purchase the Microchip TC4422 high-speed, high-current MOSFET driver online today. Designed for driving large MOSFETs and IGBTs, it features peak currents up to 9A, a wide operating voltage range of 4.5V to 18V, and fast switching times of approximately 60 ns. Its low output impedance and built-in protections ensure excellent performance in motor drives, line drivers, and pulse generators. Order now to enhance your power management with this reliable, compact, and efficient driver.
Buy Microchip TC4422 high-current MOSFET driver now and experience unmatched reliability and performance in your power switching applications.
