Microchip Technology TC7117ACPL precision ADC
The TC7117A is a 3-1/2 digit CMOS analog-to-digital converter designed for precision measurements and display applications. It features a low drift internal voltage reference, display hold function, high impedance differential inputs, and direct LCD or LED drive capability. Its key attributes include low noise, linearity error less than 1 count, rollover error below +1 count, and a power-efficient operation at 10mW. Ideal for thermometry, load cell readouts, digital meters, and portable instrumentation, it operates from a 5V supply, with package options including PDIP, CERDIP, PQFP, and PLCC, and a typical temperature range of 0°C to +70°C.
Microchip Technology TC7117ACPL precision ADC Specifications:
- Display Type: 3-1/2 Digit CMOS ADC
- Resolution: 0.05%
- Input Range: 2V or 200mV Full Scale Range (FSR)
- Input Impedance: 10^17 ohms high-impedance differential inputs
- Sampling Rate: 3 conversions per second
- Power Consumption: 10mW
- Operating Voltage: +5V (typical)
- Temperature Range: 0°C to +70°C (CPL, PDIP), -25°C to +85°C (CERDIP)
- Package Options: 40-Pin PDIP, 40-Pin CERDIP, 44-Pin PQFP, 44-Pin PLCC
- Display Drive: Directly drives LCD or LED displays with current limiting circuitry
- Auto-Zero Cycle: Ensures zero reading with zero input, low noise performance
- Display Hold Function: Maintains displayed reading indefinitely when activated
- Input Voltage: Accepts differential signals within supply limits, can exceed supply with current limit
- Linearity Error: Less than 1 count, rollover error below +1 count
- Reference: Internal low drift voltage reference, optional external reference available
- Operating Ambient Temperature: 0°C to +70°C

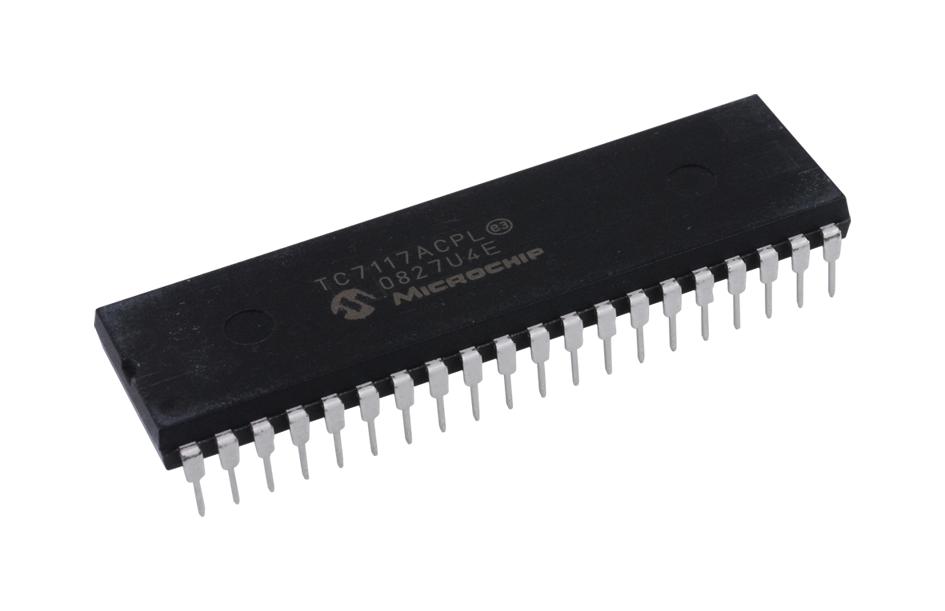

Buy the Buy Microchip TC7117A Part Number TC7117ACPL Online
Enhance your measurement projects by purchasing the Microchip TC7117A precision ADC online. This reliable device offers high accuracy, low drift, and versatile display driving options, making it suitable for thermometry, load cells, digital meters, and portable instrumentation. Its low noise performance and display hold function ensure stable readings essential for precision applications. Operating from a 5V supply, with various package options including PDIP and PQFP, the TC7117A guarantees dependable performance in a compact design. Order now to improve your measurement accuracy and system reliability.
Order your Microchip Series TC7117A precision ADC today and give your measurement systems the dependable accuracy they need for thermometry, load cells, and portable meters.
Frequently Asked Questions
Where can I buy Microchip Technology TC7117ACPL?
You can click on the BUY or RFQ button to purchase TC7117ACPL from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC7117ACPL?
You can download the TC7117ACPL datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC7117ACPL?
Microchip Technology
