Microchip Technology TC7117CPL Analog-to-Digital Converter
The TC7116A and TC7117A are 3-1/2 digit CMOS analog-to-digital converters designed for precise measurements and display drive applications. Featuring low temperature drift internal references of 20 ppm/°C and 80 ppm/°C respectively, they include integrated decoders, polarity indicators, and drive circuits for LCD or LED displays. With high impedance differential inputs, auto-zero cycle, display hold function, and low noise performance, these converters are suitable for thermometry, load cells, digital meters, and portable instrumentation. They operate from 5V supplies, with options for various packages and operating temperature ranges from 0°C to +85°C.
Microchip Technology TC7117CPL Analog-to-Digital Converter Specifications:
- Resolution: 3.5 digits, 2000 counts full scale
- Reference Voltage: Internal: 20 ppm/°C or 80 ppm/°C drift; External reference optional
- Input Range: 200mV or 2V full scale
- Input Impedance: 10^7 ohms
- Auto-zero cycle: Eliminates zero adjustment Potentiometer
- Display Drive: Directly drives LCD or LED displays, up to 24 segments
- Power Supply: +5V, low power operation (10mW typical)
- Operating Temperature: 0°C to +85°C
- Package Options: 40-pin PDIP, CERDIP, 44-pin PQFP, PLCC
- Noise Performance: 15uVp.p
- Linear Error: Less than 1 count
- Rollover Error: Below +1 count
- Hold Function: Maintain display reading via HLDR pin
- Applications: Thermometry, strain gauges, digital voltmeters, portable systems

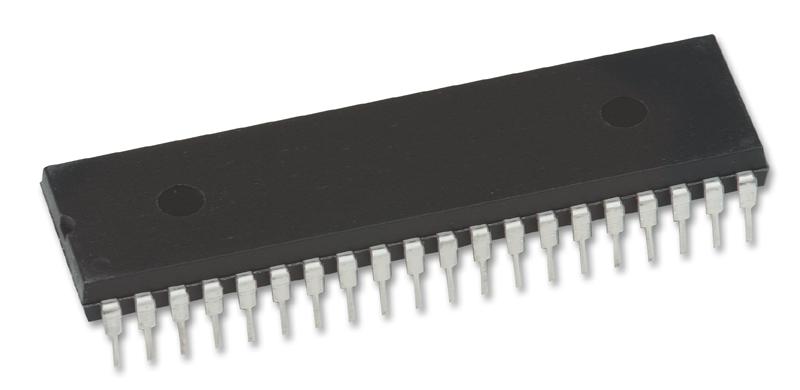

Buy the Buy Microchip TC7117CPL Part Number TC7117CPL Online
Purchase the Microchip TC7117CPL online today to ensure accurate measurement and stable display performance. With low drift internal references, high impedance inputs, and integrated drive circuitry, this ADC is ideal for thermometry, load cell readouts, and portable meters. Its auto-zero function and hold feature make it versatile for various industrial and scientific applications. Available with multiple package options, the TC7117CPL provides high accuracy and low noise for demanding environments, ensuring your measurement systems are reliable and efficient.
Buy Microchip TC7117CPL now and experience unmatched reliability and performance in precision measurement and display systems.
Frequently Asked Questions
Where can I buy Microchip Technology TC7117CPL?
You can click on the BUY or RFQ button to purchase TC7117CPL from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC7117CPL?
You can download the TC7117CPL datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC7117CPL?
Microchip Technology
