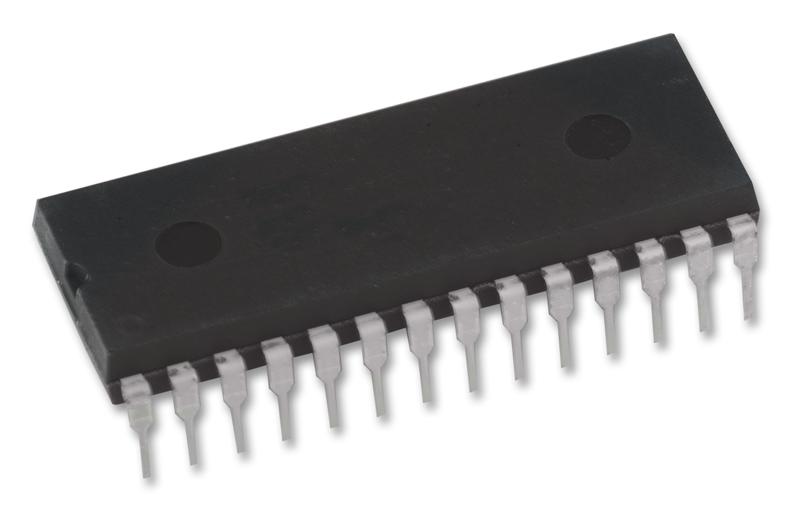

Microchip Technology PIC32MM0064GPL028ISP 32-bit Microcontroller
The PIC32MM0064GPL028 microcontroller features a 32-bit MIPS32 microAptiv core with up to 64K flash memory, integrated timers, multiple communication interfaces including SPI, UART, and I2C, low power modes, and advanced peripherals such as CRC, comparators, and configurable logic cells. Designed for cost-sensitive applications, it supports programmable oscillator options, flexible I/O pin remapping, and robust power management features. The device offers integrated voltage regulation, high endurance flash, and comprehensive diagnostic and debugging capabilities, making it suitable for embedded control, automation, and IoT solutions.
Microchip Technology PIC32MM0064GPL028ISP 32-bit Microcontroller Specifications:
- Core: 32-bit MIPS32 microAptiv™ UC core with 5-stage pipeline
- Flash Memory: Up to 64K with ECC, 20,000 erase/write cycles, 20 years data retention
- SRAM: 8K Data Memory
- Operating Voltage: 2.0V to 3.6V
- Operating Temperature: -40°C to +85°C
- Power Consumption: 0.45 mA at 2V, 0.65 mA at 3.3V in active mode; sleep/idle current varies based on mode
- Clock Sources: Internal FRC, secondary crystal oscillator, external clock options
- Timers: One Timer1 with external clock support
- Communication Interfaces: Two UARTs, two SPI modules with FIFO, I2C-compatible modules
- Analog: 12-bit ADC with threshold detect, up to 14 channels
- Cryptography & CRC: Hardware CRC generator, Configurable logic cells
- GPIO: Up to 36 remappable pins, supports open-drain, pull-ups, and external interrupt capability
- Debugging: Standard ICSP, JTAG, hardware breakpoint, real-time tracing
- Package: 28-pin UQFN with 0.55 mm pitch, compact size
Buy the Microchip PIC32MM0064GPL028 U+2013 Reliable Microcontroller for Industrial Applications
Discover the PIC32MM0064GPL028, a high-performance, low-power 32-bit microcontroller with up to 64K flash memory, multiple interfaces, and advanced features. Its flexible I/O, comprehensive timers, and integrated peripherals make it ideal for industrial automation, IoT, and control applications. With robust debugging, programmable oscillator options, and reliable power management, this device ensures efficient operation in cost-sensitive environments. Order online today and equip your embedded system with Microchip's trusted technology for durability and precision.
Get Microchip PIC32MM0064GPL028 today—optimized for low power, versatile communication, and robust control in industrial and embedded systems.
Frequently Asked Questions
Where can I buy Microchip Technology PIC32MM0064GPL028ISP?
You can click on the BUY or RFQ button to purchase PIC32MM0064GPL028ISP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC32MM0064GPL028ISP?
You can download the PIC32MM0064GPL028ISP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC32MM0064GPL028ISP?
Microchip Technology
