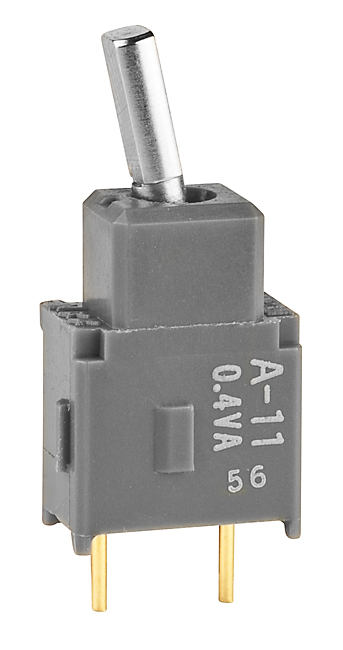

NKK Switches A11HP Sealed Subminiature Toggle Switch
This is a subminiature toggle switch designed for electronic and electrical applications. It features a compact size suitable for space-constrained assemblies and provides reliable switching performance. The switch is sealed to prevent contact contamination, making it ideal for logic-level circuits in industrial equipment. It offers multiple circuit configurations like SPST, SPDT, and DPDT, with ratings up to 0.4VA at 28V AC/DC. Constructed with durable materials such as brass, nickel plating, and glass fiber reinforced polyamide, it withstands environmental stress and ensures long-term reliability, suitable for automation, instrumentation, and control systems.
NKK Switches A11HP Sealed Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC between contacts & case for 1 min
- Mechanical Life: 100,000 operations min for On-None-On
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggle
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Materials & Finishes: Toggle Brass with Bright Nickel; Case Housing Glass fiber reinforced polyamide; Support Bracket Polyamide; Contacts Phosphor bronze with gold plating; Terminals Tin plated phosphor bronze
- Environmental Data: -30°C to +85°C, 90-95% humidity for 240 hours @ 40°C, Vibration 10-55Hz, 50G shock resistance
- PCB Processing: Support for Wave Soldering, Manual Soldering, Automated cleaning in accordance with Profile A, B, and cleaning specifications.
Buy the NKK A11HP – Reliable Toggle Switch for Industrial Applications
Order the NKK Sealed Subminiature Toggle Switch today online and enhance your electronic or industrial projects with a space-saving, reliable, and durable switch. Designed for logic-level circuits, it offers multiple circuit configurations including SPST, SPDT, and DPDT with high durability rated for hundreds of thousands of operations. Constructed with corrosion-resistant materials, it withstands environmental challenges while providing consistent performance. Perfect for automation systems, instrumentation, and control devices, this switch ensures secure connections and long-term reliability, making it an essential part of your industrial toolkit.
Get NKK A11HP toggle switch today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches A11HP?
You can click on the BUY or RFQ button to purchase A11HP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A11HP?
You can download the A11HP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A11HP?
NKK Switches
