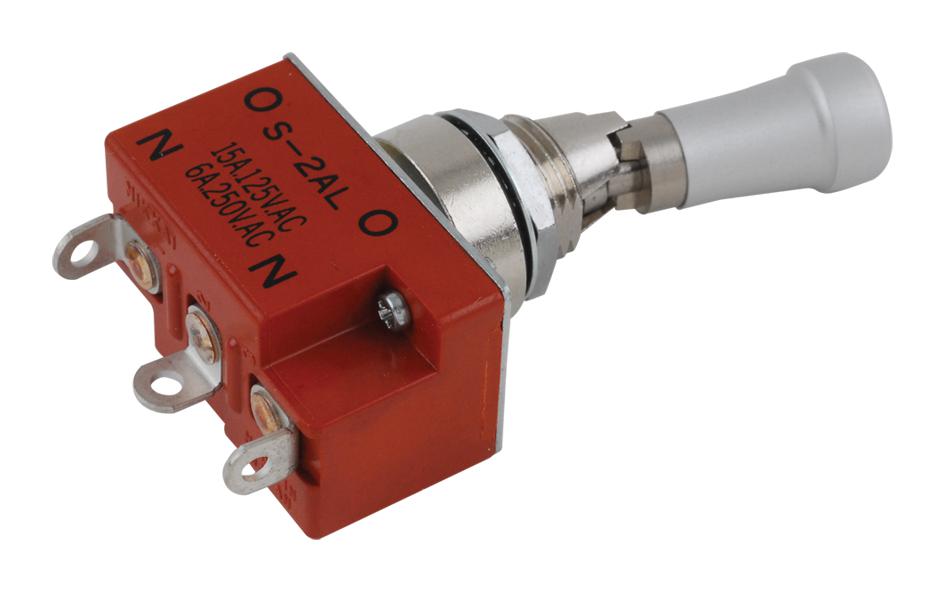

NKK Switches S2AL Medium Capacity Toggle Switch
Medium capacity standard size toggles designed for industrial applications, offering reliable electrical performance and durability. These toggles include various configurations such as single pole, double pole, and models with quick connect, panel seal, or lock lever features. Suitable for resistive and inductive loads with high electrical ratings and mechanical longevity. They comply with UL and CSA standards, have environmental sealing, and are easy to install with specified torque and maximum panel thickness compatibility. Ideal for control panels requiring robust switching components.
NKK Switches S2AL Medium Capacity Toggle Switch Specifications:
- Electrical Capacity: 15A 125V AC, 6A 250V AC, 20A 30V DC, resistive and inductive loads
- Mechanical Life: 30,000 to 50,000 operations depending on model
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Resistance: 2,000V AC minimum for 1 minute
- Materials & Finishes: Brass with chrome plating, phenolic resin, steel with zinc plating, copper with silver plating, tin-plated brass
- Maximum Panel Thickness: 0.158 inches (4.0mm)
- Operating Temperature Range: 10°C to 70°C (14°F to 158°F), splashproof models meet IP67
- Installation Torque: 1.47Nm (13 in-lb) for single nut, 2.94Nm (26 in-lb) for double nut
- Soldering Temperature: Recommended profile in supplement section
- Standards & Certifications: UL Recognized, CSA Certified
Buy the NKK S2AL – Reliable Toggle Switches for Industrial Applications
Purchase the NKK medium capacity toggle switch online today for dependable performance in industrial control systems. engineered to withstand harsh environments, these switches feature high electrical ratings, IP67 sealing for splashproof protection, and durable materials like brass and phenolic resin. Easy to install with specified torque and panel thickness guidelines, they ensure reliable operation for resistive and inductive loads. Perfect for control panels, machinery, and automation systems needing robust switching components, all available for quick online procurement.
Get NKK S2AL toggle switch today—built for precision and long-lasting durability in demanding control panel environments.
Frequently Asked Questions
Where can I buy NKK Switches S2AL?
You can click on the BUY or RFQ button to purchase S2AL from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S2AL?
You can download the S2AL datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S2AL?
NKK Switches
