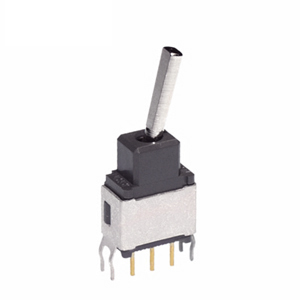

NKK Switches A12EB Subminiature Toggle Switch
This is a subminiature toggle switch designed for electronic applications. It features a compact size suitable for small or space-constrained devices, providing reliable switching performance.
NKK Switches A12EB Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megaohms min @ 500V DC
- Dielectric Strength: 500V AC (contacts & case) for 1 min
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained)
- Contact Timing: Nonshorting (break-before-make)
- Toggle Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze, brass
- Operating Temperature: -30°C to +85°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Soldering: Wave and manual soldering compatible
- Standards: Not UL or CSA certified
- Size: Compact 0.394 inch (10.0 mm) or 0.248 inch (6.3 mm) toggle
- Configuration: Single and double pole options, various circuit arrangements
Buy the Buy NKK Process Sealed Subminiature Toggle Part Number A12EB Online
Order the NKK A12EB subminiature toggle switch online today to ensure your electronic projects have reliable, space-efficient switching components. Perfect for low-voltage, low-current logic circuits, this switch provides high durability with up to 100,000 mechanical cycles and excellent resistance to contamination and environmental factors. Easily integrate it into your PCBs with compatible dimensions and professional soldering options. Benefit from fast delivery and trusted quality, making it the ideal choice for space-constrained electronic applications.
Buy NKK A12EB toggle switch now and experience unmatched reliability and space-saving performance in your electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches A12EB?
You can click on the BUY or RFQ button to purchase A12EB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A12EB?
You can download the A12EB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A12EB?
NKK Switches
