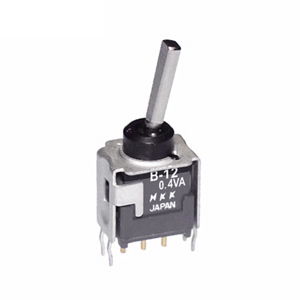

NKK Switches B12EB Subminiature Toggle Switch
The B12EB toggle switch is a compact, space-saving switch ideal for low-voltage, low-current logic-level circuits. Its process-sealed, antistatic, and totally sealed body construction prevents contact contamination, making it suitable for precise control in constrained spaces. Featuring an award-winning contact mechanism, it offers smooth actuation, high stability, and reliable switching performance. Designed for PCB mounting with optional panel seal mounting, this switch supports various configurations including single and double pole options. Its durable nickel-plated brass contacts and epoxy-sealed terminals ensure long-lasting, maintenance-free operation, making it perfect for industrial, control, and automation applications.
NKK Switches B12EB Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations for On-None-On & On-Off-On circuits
- Nominal Operating Force: 1.47N (long paddle toggle), 2.72N (short paddle toggle)
- Toggle Type: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass, carbon-blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide, phosphor bronze with gold plating, copper alloy with gold plating
- Operating Temperature Range: -30°C to +85°C
- Environmental Conditions: 90-95% humidity for 96 hours @ 40°C, vibration resistance 10-55Hz with 1.5mm amplitude, shock resistance 50G
- Mounting Torque: 30-40 in-lb for threaded bushing
- Soldering: Wave and manual soldering recommended, automated cleaning suitable
- Certifications: UL9AV-0 approved, not UL or CSA recognized for the complete switch
- Design Features: Antistatic superstructure, totally sealed body, optional threaded panel mount with IP65 rating, improved contact stability with STC mechanism.
Buy the NKK Series B Toggle: B12EB
Order the NKK B12EB toggle switch online today to experience a compact, sealed, and antistatic switch perfect for low-voltage control circuits. Its space-saving design ensures easy integration into tight spaces, while the durable construction guarantees long-lasting performance. With sealed terminals and optional panel mount, the B12EB provides reliable operation in industrial, automation, and control systems. Buy now and enjoy high stability, smooth actuation, and maintenance-free switching engineered for precision and durability in your next project.
Get NKK B12EB toggle switch today—built for space-efficient and reliable circuit control in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches B12EB?
You can click on the BUY or RFQ button to purchase B12EB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B12EB?
You can download the B12EB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B12EB?
NKK Switches
