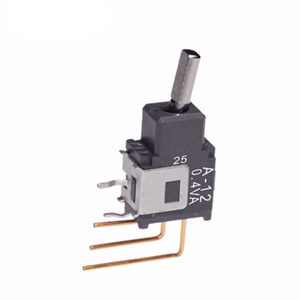

NKK Switches A12HV PCB Toggle Switch
This is a subminiature toggle switch designed for printed circuit board (PCB) mounting. It features a compact size suitable for applications with space constraints, providing reliable on/off switching control. The switch offers multiple circuit configurations, including single pole and double pole options, with various toggle orientations such as vertical, right angle, and straight. Constructed with durable materials, it supports high insulation resistance, short mechanical lifespan, and is suitable for low-voltage, low-current logic-level circuits. Its sealed design prevents contamination, ensuring long-term stability and performance in industrial and electronic applications.
NKK Switches A12HV PCB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Contact Timing: Nonshorting (break-before-make)
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggle
- Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide for antistatic, nickel plated brass, phosphor bronze with gold plating, brass with gold plating
- Environmental: -30°C through +85°C, 90-95% humidity for 240 hours @ 40°C, 10-55Hz vibration, 50G acceleration
- Soldering: Wave and manual soldering recommended, automated cleaning supported
