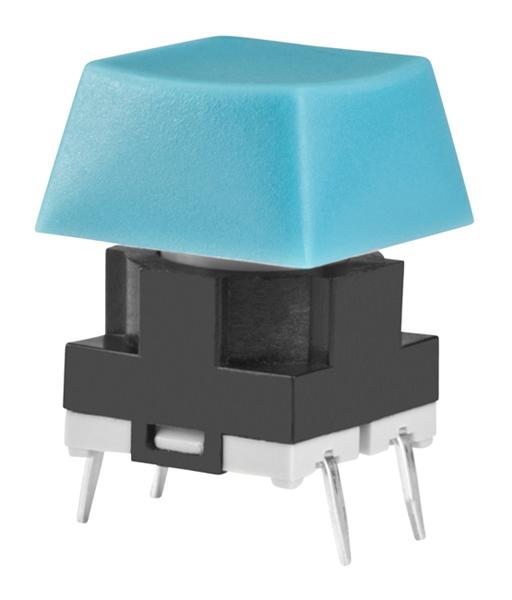

NKK Switches JB15HAP1G Tactile Push Button Switch
The JB series low profile tactile push button switch is designed for PCB mounting, offering durable, crisp tactile feedback for low-voltage, low-current circuits. It features sealed construction with rubber seals to prevent contact contamination, making it suitable for automated soldering and cleaning processes. Available in various sizes and actuator options like flat or sculptured, it provides reliable long life up to 5,000,000 operations. Its compact design with molded terminals ensures secure mounting and consistent performance in industrial and electronic applications.
NKK Switches JB15HAP1G Tactile Push Button Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC for Standard; 125mA @ 24V DC for High Operating Force
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (JB15F), 2.65N (JB1SH)
- Total Travel: Not specified
- Actuator: Flat, Sculptured, Extended, Short options
- Case & Base: Glass fiber reinforced PBT, UL94V-0 rated
- Seal: Rubber BBD
- Terminal Type: Molded-in, slanted for secure mounting, conforming to .100" PCB spacing
- Operating Temperature Range: 25°C to +70°C
- Vibration: 10~55Hz, peak-to-peak amplitude 1.5mm for 2 hours
- Shock: 50G acceleration
- Sealing: IP67 (IEC60529)
- Soldering: Wave and manual recommended
- Standards & Certifications: UL94V-0 case and base; not UL recognized or CSA certified
