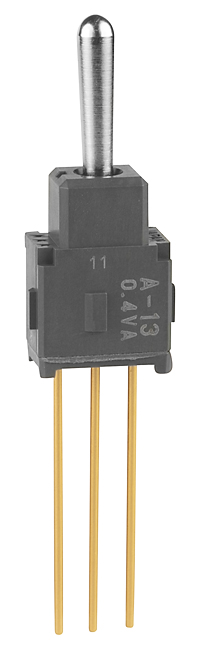

NKK Switches A13AW Toggle Switch
A subminiature toggle switch designed for precision applications. Suitable for diverse electronic projects and equipment requiring reliable switching in compact spaces.
NKK Switches A13AW Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megaohms minimum @ 500V DC
- Dielectric Strength: 500V AC between contacts and case for 1 minute minimum
- Mechanical Life: 100,000 operations minimum for ON-None-ON & ON-OFF-ON circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide for antistatic; nickel plated brass for contacts
- Environmental Ratings: -30°C to +85°C, 90-95% humidity for 240 hours
- Soldering: Wave soldering recommended; manual soldering with Profile B
- Certifications: Not tested for UL or CSA recognition
- Size: Compact form, terminal spacing 100” x .100” (2.54mm x 2.54mm)
Buy the Buy NKK A13AW Process Sealed Subminiature Toggle Part Number A13AW Online
Order the NKK A13AW toggle switch online now to experience reliable performance in compact electronic designs. Perfect for precision applications requiring space-efficient, durable switches with excellent electrical characteristics. Take advantage of fast shipping and secure checkout to ensure your project progresses smoothly. Whether for industrial electronics, control panels, or custom circuits, this toggle switch offers dependable operation, easy installation, and consistent electrical stability. Don't miss out—buy NKK A13AW today for your reliable switching needs!
Get NKK A13AW toggle switch today—built for precision, space-saving performance, and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy NKK Switches A13AW?
You can click on the BUY or RFQ button to purchase A13AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13AW?
You can download the A13AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13AW?
NKK Switches
