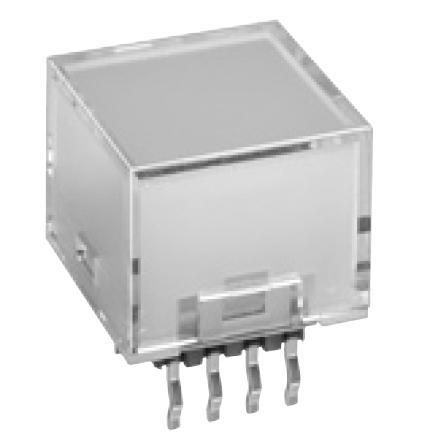

NKK Switches NP0115HG03NNB Subminiature Pushbutton
This subminiature pushbutton switch offers a compact design ideal for space-constrained electronic applications. It features a 1.5mm (.059”) stroke with smooth actuation achieved by a mechanical silicon rubber structure, ensuring a soft touch feel. Available in illuminated and non-illuminated versions, it includes gold-plated contacts for high reliability and crimped terminals for secure PC mounting. The switch supports a resistive load of up to 0.4VA at 28V AC/DC, a contact resistance of 50 milliohms, and a long operational lifespan of 500,000 cycles. Suitable for low-voltage, logic-level circuits, it withstands temperatures from -25°C to +70°C and environmental humidity up to 96 hours at 40°C, making it versatile and durable for industrial control panels and user interfaces.
NKK Switches NP0115HG03NNB Subminiature Pushbutton Specifications:
- Dimensions: 12.5mm (.492") from PCB to top of cap
- Stroke: 1.5mm (.059")
- Operating Force: Standard 1.5N (+0.5N), High 2.5N (+0.8N)
- Contact Resistance: 50 milliohms maximum
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum between contacts for 1 minute
- Materials: Polycarbonate resin (cap), silicon rubber (actuator), glass fiber reinforced polyamide (base), gold plated contacts
- Operating Temperature Range: -25°C to +70°C (illumination up to +50°C)
- Humidity Resistance: 96 hours @ 40°C
- Soldering: Wave 270°C max @ 6s, Manual 390°C max @ 4s
- Environmental Resistance: Shock 50G, vibration 3Hz–55Hz, humidity 95%
- Packaging: Partitioned tray, 50 pieces/stick
- Certification: Not UL or CSA certified, designed for low-voltage logic circuits
