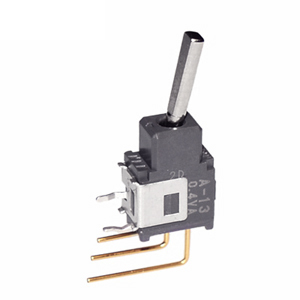

NKK Switches A13EV Miniature Toggle Switch
This is a subminiature toggle switch designed for space-efficient electronic applications, offering reliable on/off switching. Its compact size makes it ideal for PCB integration in low-voltage, low-current logic circuits. The switch features a sealed body for contamination resistance, durable metal contacts, and multiple circuit configurations such as single-pole and double-pole options. It supports automated soldering and cleaning, with a temperature range from -30°C to +85°C and testing for environmental durability. Perfect for automated equipment, electronic control systems, and space-constrained projects.
NKK Switches A13EV Miniature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC between contacts & case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary), 1.18N (maintained)
- Contact Timing: Nonshorting (break-before-make)
- Materials: Glass fiber reinforced polyamide, nickel-plated brass, phosphor bronze with gold plating
- Environmental Tolerance: -30°C to +85°C, 90-95% humidity for 240 hours
- Soldering & Cleaning: Wave soldering, manual soldering, automated cleaning supported
- Supports PCBs with 0.100” x 0.100” terminal spacing
- Certification: Not UL or CSA tested
Buy the NKK Series A Toggle Switch: A13EV
Get your NKK Series A13EV toggle switch online today and enjoy seamless installation in compact electronic devices. Its sealed body ensures protection against contaminants, while its reliable switching performance guarantees consistent operation. Designed for space-constrained applications, this switch supports multiple circuit configurations, durable contacts, and automated soldering compatibility. Whether for control panels or embedded systems, purchasing online simplifies procurement, offering prompt delivery, competitive pricing, and the trusted quality NKK’s industry-leading switches provide. Enhance your projects with this dependable toggle switch now.
Order your NKK Series A13EV toggle switch today and integrate this space-saving, reliable toggle into your electronic designs for dependable operation.
Frequently Asked Questions
Where can I buy NKK Switches A13EV?
You can click on the BUY or RFQ button to purchase A13EV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13EV?
You can download the A13EV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13EV?
NKK Switches
