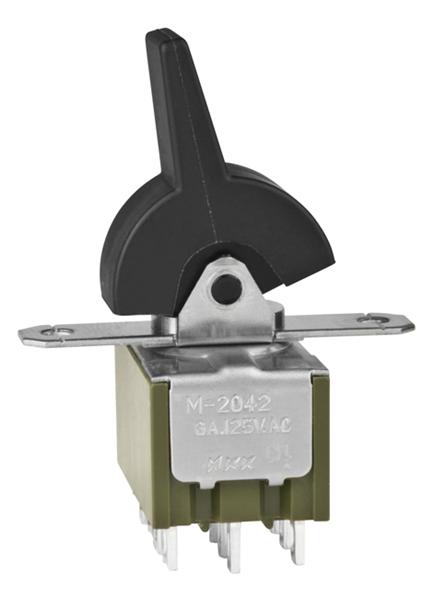

NKK Switches M2042TNW01EA Miniature Toggle Switch
The miniature toggle switch offers versatile multi-function capabilities, suitable for a wide range of electronic applications. Its compact design ensures effortless integration into devices requiring space-efficient switches, making it ideal for panel mounting, automation systems, and control panels. Built with high-quality materials, it provides reliable performance, excellent electrical ratings, and long mechanical life. Its insulative barriers and epoxy-sealed terminals prevent contaminants, ensuring durability in harsh environments. Perfect for industrial controls, consumer electronics, and instrumentation, this switch combines efficiency with robust construction for dependable operation.
NKK Switches M2042TNW01EA Miniature Toggle Switch Specifications:
- Power Level (silver): 6A @ 125V AC, 3A @ 250V AC
- Logic Level (gold): 0.4VA max @ 28V AC/DC
- Electrical Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations silver, 50,000 gold
- Operating Temperature: -30°C to +85°C
- Vibration Resistance: 10-55Hz, amplitude 1.5mm, 2 hours
- Shock Resistance: 50G, in 6 directions with shocks
- Materials: Case - Diallyl phthalate UL94V-0; Contacts - Phosphor bronze, silver or gold plated
- Terminals: Solder lug, epoxy sealed
- Mounting: Flat frame, snap-in, and PCB options
- Certifications: UL and CSA recognized upon ordering with marking
Buy the NKK Series M Miniature Switch: M2042TNW01EA
Enhance your electronic designs with the NKK Series M Miniature Toggle Switch, model M2042TNW01EA. Its space-efficient, robust construction ensures reliable switching in automation, control panels, and instrumentation. Designed with high-performance materials, it provides excellent electrical ratings, long mechanical lifespan, and superior insulation. Easy to mount with versatile options, this switch is perfect for industrial, consumer, and instrumentation applications. Purchase online today to experience dependable operation and improve your device’s performance with this high-quality toggle switch.
Order your NKK Series M Miniature Switch M2042TNW01EA today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches M2042TNW01EA?
You can click on the BUY or RFQ button to purchase M2042TNW01EA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2042TNW01EA?
You can download the M2042TNW01EA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2042TNW01EA?
NKK Switches
