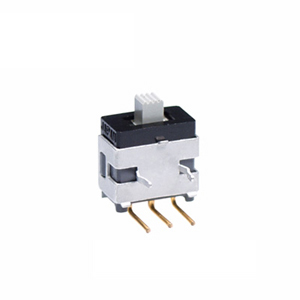

NKK Switches AS13AH Subminiature Slide Switch
This subminiature slide switch is engineered for compact electronic devices where space is limited. It features a small form factor, smooth actuation, and a durable design suitable for logic-level circuits. The switch offers high reliability with a minimum of 50,000 operations and resistant terminals sealed against flux and contaminants. Ideal for low-voltage applications, it provides stable contact performance. Available in various actuator lengths and configurations, it ensures precise control in tight spaces, making it suitable for electronic modules, control panels, and automated systems.
NKK Switches AS13AH Subminiature Slide Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC max
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC, 1 minute
- Operations: Minimum 50,000
- Pretravel: 0.082 inches (2.1mm); Overtravel: 0.016 inches (0.4mm); Total Travel: 0.098 inches (2.5mm)
- Contact Materials: Tin plated phosphor bronze, brass with gold plating
- Enclosure: Glass fiber reinforced polyamide, carbon blended polyacetal for static discharge prevention
- Operating Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% for 192 hours @ 40°C
- Vibration Resistance: 10-60Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering recommended, manual soldering for single/double poles
- Standards & Certifications: Not UL or CSA recognized
Buy the Buy NKK Series AS Subminiature Slides Part Number AS13AH Online
Discover the high-quality NKK Series AS subminiature slide switch available online. Designed for compact electronic systems, it ensures reliable operation with over 50,000 switching cycles. Its sealed terminals resist flux and contaminants, making it ideal for low-voltage, logic-level circuits. Perfect for space-constrained applications, the switch features smooth actuation, various actuator options, and a rugged construction. Buy online today and enhance your device's performance with this durable, high-reliability switch for tight spaces and precise control.
Buy NKK Series AS AS13AH subminiature slide switch now and experience unmatched reliability and space-saving precision for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches AS13AH?
You can click on the BUY or RFQ button to purchase AS13AH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AS13AH?
You can download the AS13AH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AS13AH?
NKK Switches
