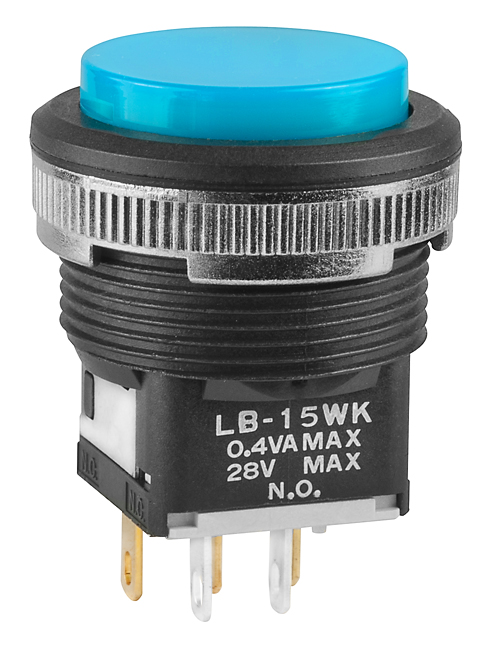

NKK Switches LB15WKG01GJ Standard Waterproof Pushbutton Switch
This standard size illuminated waterproof pushbutton switch offers reliable performance in harsh environments. Designed with a sealed IP65 rating, it features LED illumination in various colors, a snap-action contact mechanism, and secure mounting options including stainless steel clips. The switch supports resistive loads up to 3A at 125V or 250V AC, and includes optional accessories for enhanced protection. Its compact design minimizes behind-panel depth, making it suitable for industrial control panels requiring durable, weatherproof operation with tactile feedback and front panel relamping capability. Ideal for applications demanding high durability and visibility.
NKK Switches LB15WKG01GJ Standard Waterproof Pushbutton Switch Specifications:
- Illumination: LED, various colors including red, green, blue, white, amber
- Rating: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Housing: Polycarbonate, Black
- Sealing: IP65 (IEC60529), NEMA 4 & 13 compatible
- Operating Temperature: -25°C to +50°C (Illuminated), -25°C to +70°C (Non-illuminated)
- Mounting: Snap-in, screw or panel seal models
- Electrical Life: 1,000,000 operations
- Mechanical Life: 200,000 operations
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total 3.0mm
- Vibration: 10–55Hz, peak-to-peak 1.5mm
- Shock: 50G, tested in 6 directions
- Material: Glass fiber reinforced polyamide, Nitrile rubber, Silicone rubber
- Standards: UL, cUL, CSA recognized (with marking), Flammability UL 94V-0
- Dimensions: Panel cutout ø22.0mm, recommended panel thickness 1.0–4.0mm
Buy the Buy NKK Standard Waterproof Pushbutton Switch Part Number LB15WKG01GJ Online
Purchase the NKK Series LB waterproof pushbutton switch online today and enjoy fast, secure delivery. Designed for durability in harsh environments, this switch features sealed IP65 protection, vibrant LED illumination, and long electrical and mechanical life. Its compact profile ensures easy installation while maintaining reliability. Whether for machinery, outdoor equipment, or industrial automation, this switch delivers excellent tactile feedback and front panel relamping. Get yours now to enhance your control panel’s durability, visibility, and operational safety within a few clicks.
Order your NKK Series LB waterproof pushbutton switch today and ensure durable, weatherproof operation for your industrial control projects.
Frequently Asked Questions
Where can I buy NKK Switches LB15WKG01GJ?
You can click on the BUY or RFQ button to purchase LB15WKG01GJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15WKG01GJ?
You can download the LB15WKG01GJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15WKG01GJ?
NKK Switches
