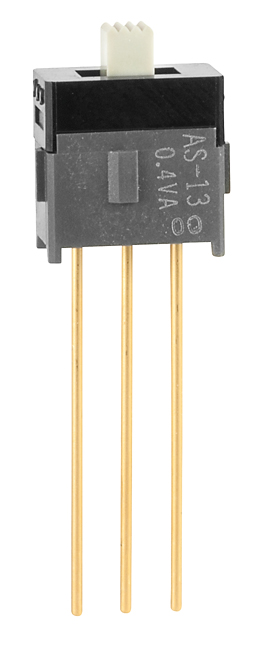

NKK Switches AS13AW Subminiature Slide Switch
This compact slide switch is designed for electronic and electrical applications, providing reliable On/Off and multi-position switching functions. Its subminiature size saves space on PC boards and features a robust STC contact mechanism for smooth, positive actuation and high contact stability. Made of glass fiber reinforced polyamide and carbon blended polyacetal, it has gold-plated contacts for durability. Suitable for low-voltage circuits, it endures vibration, shock, and humidity, making it ideal for space-constrained, logic-level switching needs in automation and control systems.
NKK Switches AS13AW Subminiature Slide Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Endurance: 50,000 operations minimum
- Pretravel: 0.082" (2.1mm); Overtravel: 0.016" (0.4mm); Total Travel: 0.098" (2.5mm)
- Materials: Glass fiber reinforced polyamide body, carbon blended polyacetal superstructure, tin-plated phosphor bronze contacts
- Operating Temperature Range: -30°C to +85°C
- Humidity Tolerance: 90–95% for 192 hours @ 40°C
- Vibration & Shock Resistance: 10–60Hz with peak-to-peak displacement of 1.5mm; 50G shocks in 6 directions
- Soldering: Wave soldering recommended, manual soldering possible for single and double poles
- Standards & Certifications: Not UL or CSA approved, designed for low-voltage logic circuits
Buy the NKK AS Series – Reliable Subminiature Switch for Industrial Applications
Order the NKK AS13AW subminiature slide switch online today and enhance your circuit control systems with durable, space-saving, and reliable switching solutions. Designed for low-voltage, logic-level applications, this switch offers smooth, positive actuation and high contact stability. Its compact size saves PCB space while ensuring dependable performance under vibration, shock, and humidity conditions. Perfect for automation, electronics, and control panels, purchase now to improve your project’s reliability and efficiency with a trusted brand recognized for quality.
Buy NKK AS13AW slide switch now and experience unmatched reliability and performance in compact electronic circuit control.
Frequently Asked Questions
Where can I buy NKK Switches AS13AW?
You can click on the BUY or RFQ button to purchase AS13AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AS13AW?
You can download the AS13AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AS13AW?
NKK Switches
