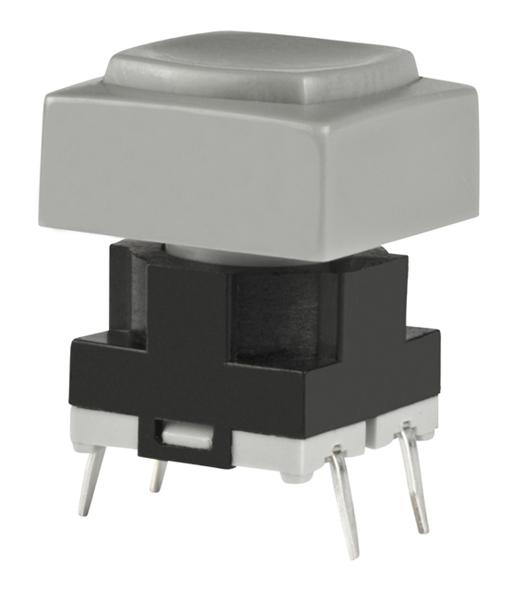

NKK Switches JB15HAP4HH Low Profile Tactile Switch
The JB15HAP4HH is a low profile tactile switch designed for printed circuit board (PCB) applications. It provides reliable tactile feedback and a crisp response, ensuring dependable circuit activation in compact electronic devices. The switch features a sealed construction with rubber seals, making it resistant to contact contamination and suitable for automated soldering and cleaning processes. With a long mechanical life of up to 5 million operations, this switch is ideal for low-voltage, low-current logic circuits where durability and precision are essential. It conforms to IP67 sealing standards for robust environmental protection.
NKK Switches JB15HAP4HH Low Profile Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC (Standard Force), 125mA @ 24V DC (High Force)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (JB15F), 2.65N (JB1SH)
- Total Travel: 0.010" {.250mm} or 0.012" (.300mm)
- Actuator Material: Glass fiber reinforced PBT for extended actuator, PBT for flat, Polyacetal for short
- Case: UL94V-0 rated glass fiber reinforced polyamide
- Seal: Nitrile butadiene rubber
- Base: UL94V-0 rated glass fiber reinforced PBT
- Moving Contacts: Phosphor bronze with tin plating
- Stationary Contacts: Brass with silver plating
- Terminals: Brass with silver plating
- Mounting Bracket: Not specified
- Operating Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm for 1 minute
- Shock: 50G in 6 directions
- Sealing: IP67 (IEC60529)
Buy the NKK Series JB Low Profile Process Sealed Tactiles: JB15HAP4HH
Order the NKK JB Series JB15HAP4HH low profile tactile switch online today to ensure your electronic device benefits from high durability, sealed contact protection, and crisp tactile feedback. Perfect for PCB applications requiring minimal height, this switch delivers reliable operation with a lifespan of up to 5 million cycles. Its sealed construction provides resistance to contamination, while its design supports automated soldering and cleaning processes. Enhance your project with this high-performance, compact tactile switch for dependable circuit activation in various electronic devices.
Buy NKK JB15HAP4HH low profile tactile switch now and experience unmatched reliability and performance in compact electronic designs.
