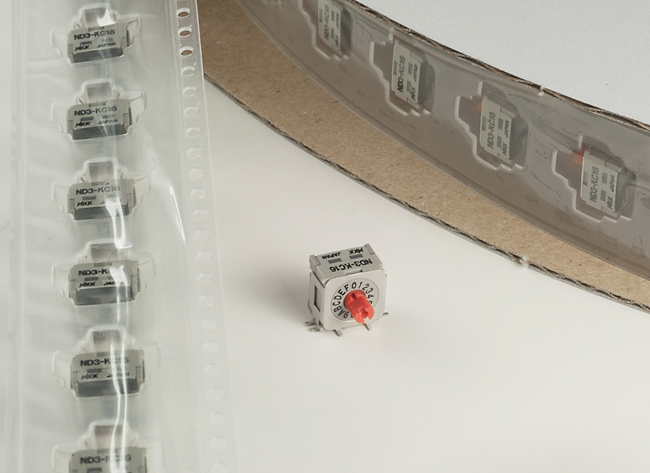

NKK Switches ND3KC16HR Rotary Switch
This DIP or SMD rotary switch features sealed construction with sixteen positions, designed for electronic circuit control and configuration. It offers reliable operation with a detent mechanism for precise switching, high environmental resistance, and compatibility with vapor phase and IR reflow soldering processes. Made from UL94V-0 rated glass fiber reinforced polyamide with gold-plated contacts, the switch handles low-voltage, low-current logic circuits, ensuring safe, dependable performance in various industrial and consumer electronic applications. Its rugged design supports extensive operational cycles and environmental stability.
NKK Switches ND3KC16HR Rotary Switch Specifications:
- Flammability: UL 94V-0
- Contact Material: Beryllium copper with gold plating
- Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: 25°C to +85°C
- Electrical Life: 20,000 detent operations minimum
- Contact Resistance: 80 milliohms maximum for circuit; 30 milliohms maximum for contact point
- Insulation Resistance: 1,000 megohms minimum @ 250V DC
- Voltage Rating: 250V AC for 1 minute
- Environmental Resistance: 90–95% humidity at 40°C for 100 hours
- Mechanical Durability: 20,000 detent operations
- Assembly: Reflow solder compatible, with sealed construction
- Dimensions: Approximate diameter 8mm, height varies with model
- Mounting: Surface mount technology (SMT)
- Certification: UL94V-0 rated housing & base
Buy the NKK ND3KC16HR – Reliable Rotary Switch for Industrial Applications
Order the NKK ND3KC16HR rotary switch online today to ensure your electronic projects or industrial controls operate reliably. This sealed, 16-position switch offers outstanding durability, environmental resistance, and precise actuation, making it ideal for low-voltage, low-current logic circuits. Its compatibility with vapor phase and IR reflow soldering simplifies assembly, while the rugged construction withstands extensive use and harsh conditions. Whether upgrading existing equipment or designing new electronics, this switch provides top performance and trustworthiness for your application needs.
Get NKK ND3KC16HR today—built for precision, durability, and versatile circuit control in electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches ND3KC16HR?
You can click on the BUY or RFQ button to purchase ND3KC16HR from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ND3KC16HR?
You can download the ND3KC16HR datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ND3KC16HR?
NKK Switches
