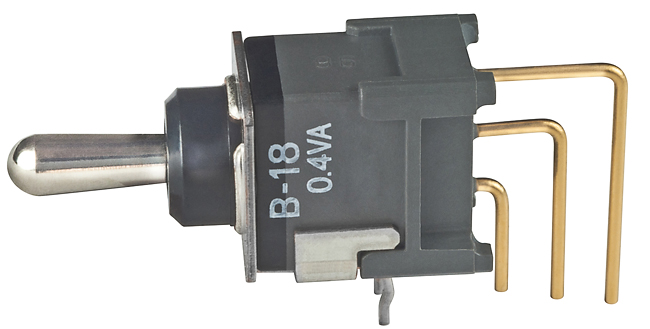

NKK Switches B18JV Subminiature Toggle Switch
The B18JV toggle switch is a compact, space-saving, subminiature switch engineered specifically for low-voltage, low-current logic circuits. Its sealed body construction prevents contact contamination, ensuring high reliability and longevity in electronic devices. Designed with enhanced contact stability, it features an award-winning STC contact mechanism for smooth, positive detent actuation. Ideal for applications requiring minimal space, it offers metal components with nickel-plated finishes, and a durable design suitable for PCB mounting. This switch supports various mounting options including panel seal and threaded bushings, making it versatile and easy to install in critical electronic systems.
NKK Switches B18JV Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.84N (short paddle toggle)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass, carbon blended polyamide, nitrile rubber, glass fiber reinforced polyamide, tin-plated phosphor bronze, gold-plated copper alloy
- Operating Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm for 1 minute
- Shock Resistance: 50G acceleration
- Mounting Torque: 30-*.ASNm (threaded bushing)
- Soldering: Wave soldering, manual, automated cleaning compatible
- Certifications: UL recognized, not tested for UL or CSA certification
- Mounting Options: Panel seal, threaded bushing, PCB support bracket
- Dimensions: Compact size with 26° contact angle, PCB terminal spacing 2.54mm (0.100")
Buy the Buy NKK Switches Toggle Switch Part Number B18JV Online
Order the NKK B18JV toggle switch online today to ensure your electronic projects benefit from high-quality, space-saving design with sealed construction for contamination resistance. This reliable switch supports low-voltage logic circuits, offers excellent durability with 100,000+ mechanical operations, and features easy PCB mounting options. Perfect for compact devices, it features corrosion-resistant nickel-plated components and state-of-the-art contact mechanisms for precise actuation. Purchase now to enhance your system’s reliability, streamline assembly, and ensure long-lasting performance in critical applications.
Buy NKK Switches B18JV toggle switch now and experience unmatched reliability and performance in space-efficient electronic control solutions.
Frequently Asked Questions
Where can I buy NKK Switches B18JV?
You can click on the BUY or RFQ button to purchase B18JV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B18JV?
You can download the B18JV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B18JV?
NKK Switches
