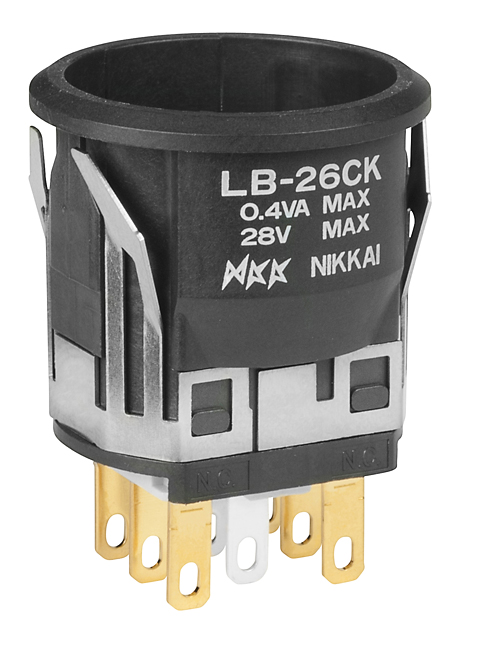

NKK Switches LB26CKG01 Illuminated Pushbutton
This standard size illuminated pushbutton switch features snap-in mounting, making installation straightforward and quick. Designed for control panels, it provides visual indication through LED illumination in various colors, including red, green, blue, and amber. Suitable for industrial, manufacturing, and automation systems, it offers reliable electrical performance with rated capacities of 3A at 125/250V AC and 0.4VA at 28V AC/DC. The switch housing is made from durable polycarbonate, ensuring long-lasting operation even in demanding environments. Variants include models with different LED colors, illumination types, and panel seal options complying with IP65 specifications, making it ideal for both indoor and outdoor use. Additional features encompass tactile feedback, snap-action contacts, and compatibility with various legends and caps for customized applications.
NKK Switches LB26CKG01 Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver contacts, 100 milliohms max for gold contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary; 200,000 for maintained circuit
- Nominal Operating Force: 4.0 N
- Travel: Pretravel 1.5mm; Overtravel 1.5mm; Total Travel 3.0mm
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Mounting: Snap-in panel mounting
- Lumination: LED in various colors, including red, green, blue, amber, with options for resistor integration
- Certifications: UL Recognized, CSA Certified, IEC IP65 panel sealed models
Buy the NKK Series LB Illuminated Pushbutton: LB26CKG01
Purchase the NKK SeriesLB26CKG01 illuminated pushbutton online today and enhance your control panels with a reliable, easy-to-install switch. Featuring snap-in mounting, durable polycarbonate housing, and bright LED illumination in multiple colors, this switch ensures clear visual indication. It offers high electrical capacity and long mechanical life, suitable for industrial applications requiring IP65 panel sealing. Get this versatile pushbutton now to improve safety, visibility, and operational efficiency in your automation systems and control setups.
Order your NKK SeriesLB26CKG01 illuminated pushbutton today and ensure reliable visual control for your industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches LB26CKG01?
You can click on the BUY or RFQ button to purchase LB26CKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26CKG01?
You can download the LB26CKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26CKG01?
NKK Switches
