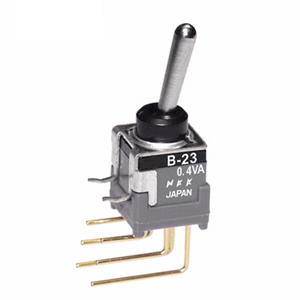

NKK Switches B23AV PCB Toggle Switch
The B23AV toggle switch is a compact, subminiature switch designed for PCB mounting in space-constrained electronic devices. It features a sealed body construction, ensuring contact protection against contamination and enabling efficient soldering and cleaning. With static discharge prevention through antistatic superstructure and reliable STC contact mechanism, it offers smooth actuation, high contact stability, and dependable logic-level performance. Suitable for low-voltage, low-current applications, this toggle switch provides durability, mounting options, and compliance with industry standards for demanding electronic environments.
NKK Switches B23AV PCB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Nominal Operating Force: 1.18N (maintained), 1.47N (momentary)
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Body Material: Glass fiber reinforced polyamide
- Bushing Material: Carbon blended polyamide
- Plating: Nickel plated brass and gold plated phosphor bronze
- Dimensions: Size varies with pole configuration, typically 2.54mm terminal spacing
- Mounting: Panel seal threaded bushing, IP65 compatible
- Standards: UL recognized (UL9AV-0), designed for low-voltage logic circuits
Buy the NKK Series B PCB Toggle Switch: B23AV
Purchase the NKK Series B PCB Toggle Switch B23AV online now to benefit from its sealed body, antistatic features, and high durability. Perfect for space-constrained electronic devices, this switch ensures reliable performance with a smooth actuation mechanism and high contact stability. Whether for low-voltage control circuits or sensitive electronic applications, ordering online provides quick delivery and easy integration. Secure your inventory of high-quality, low-current toggle switches and enhance your project reliability today.
Order your NKK Series B PCB Toggle Switch B23AV today and ensure reliable switching in your compact electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches B23AV?
You can click on the BUY or RFQ button to purchase B23AV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B23AV?
You can download the B23AV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B23AV?
NKK Switches
