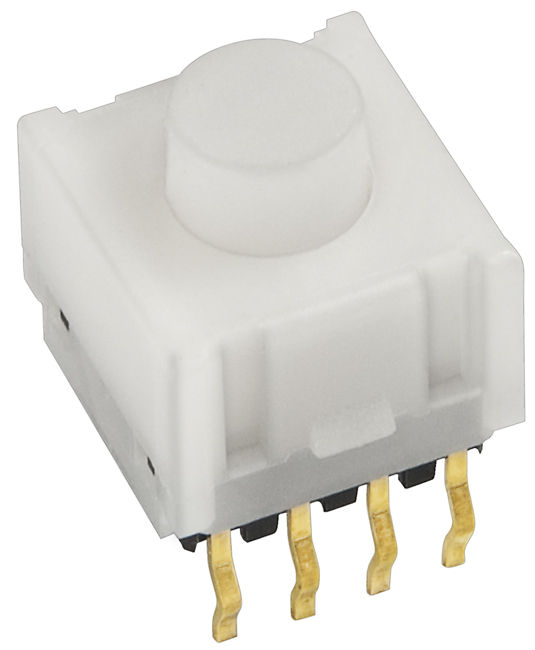

NKK Switches NP0115AG03NN Subminiature Illuminated Pushbutton Switch
This subminiature illuminated pushbutton switch offers reliable operation with long stroke and secure mounting via crimped and molded-in terminals. Its fully illuminated cap with a single or bicolor LED ensures high visibility in low-light conditions. Designed for panel mounting, it supports up to 0.4VA @ 28V AC/DC and features gold plated contacts, silicon rubber actuation, and robust construction with polycarbonate and glass fiber reinforced polyamide materials. Suitable for logic-level circuits, it withstands temperature ranges from -25°C to +50°C, with a switch life of over 500,000 operations, making it ideal for control and automation panels.
NKK Switches NP0115AG03NN Subminiature Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum between contacts for 1 minute
- Nominal Operating Force: 1.5N +0.5N (standard), 2.5N +0.8N (high)
- Stroke: 1.5mm (.059")
- Actuator Material: Silicon rubber
- Base Material: Polycarbonate resin
- Movable Contact: Silver over nickel with gold plating
- Stationary Contacts: Brass with gold plating
- Switch Terminals: Crimped and molded-in for secure mounting
- Operating Temperature Range: -25°C to +50°C
- Humidity: 96 hours @ 40°C, 90-95%
- Soldering: Wave soldering at 270°C for 6 seconds, manual soldering at 390°C for 4 seconds
- Durability: Over 500,000 operations
- Certifications: Not UL or CSA recognized, designed for low-voltage circuits
Buy the NKK Series NPO1 Subminiature Illuminated Pushbutton Switch: NP0115AG03NN
Purchase the NKK Series NPO1 Subminiature Illuminated Pushbutton Switch online now and enhance your automation or control systems with its compact size, bright LED illumination, and high durability. Designed for panel mounting, it supports up to 0.4VA @ 28V, with gold-plated contacts for reliable long-term operation. Its 1.5mm stroke and silicon rubber actuation provide smooth operation and long stroke visibility. Ideal for low-voltage electronic circuits, this switch ensures secure mounting with crimped terminals and robust construction, making it an essential component for industrial equipment and control applications.
Order your NKK Series NPO1 Subminiature Illuminated Pushbutton Switch today and give your control panels the reliable LED illumination they need.
