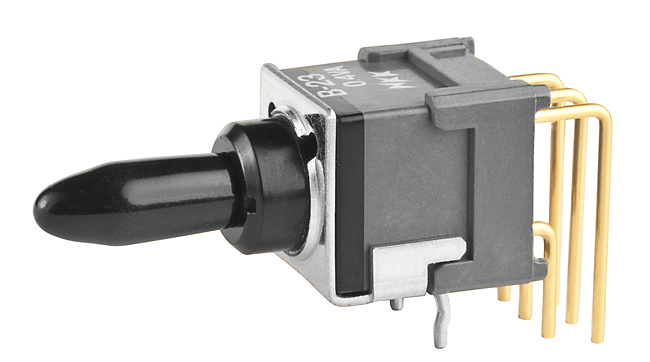

NKK Switches B23JHGA Subminiature Toggle Switch
This is a highly compact, process-sealed subminiature toggle switch ideal for space-constrained electronic systems. It offers excellent electrical performance, with a resistive load capacity of 0.4VA at 28V, and a high insulation resistance of 500 megohms. Made from durable nickel-plated brass and polyamide, it features a sealed body for contamination resistance, long mechanical and electrical life, and easy soldering. Suitable for logic-level circuits, it includes optional locking levers and panel mounting features, providing reliability and versatility in various low-voltage applications.
NKK Switches B23JHGA Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N for long paddle, 2.72N for short paddle
- Materials & Finishes: Toggle: Nickel plated brass, Bushing: Carbon blended polyamide, Gasket: Nitrile rubber
- Environmental: -30°C to +85°C operating temperature, 90-95% humidity for 96 hours @ 40°C, Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm, Shock: 50G acceleration
- Installation: Mounting torque: 30-0.3Nm, PCB processing: Soldering, cleaning: Automated cleaning protocols, Standards: UL recognized, not UL or CSA certified
- Dimensions & Mounting: Threaded bushing for panel sealing, support bracket recommended for PCB mounting, panel thickness up to 2.2mm
