NKK Switches KB15KKW01B Miniature Pushbutton Switch
This is a miniature illuminated pushbutton switch designed for panel mounting applications. It features a compact size suitable for control panels and provides illuminated operation for easy visibility.
NKK Switches KB15KKW01B Miniature Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 1A @ 125/250V AC, 0.4VA @ 28V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for silver; 750V AC for gold, minimum
- Electrical Life: Silver contacts 50,000 operations; Gold contacts 100,000 operations
- Nominal Operating Force: Single pole 0.98 ~ 2.45N maintained; 0.98 ~ 1.96N momentary
- Travel: Pretravel 0.087” (2.2mm); Overtravel 0.031” (0.8mm); Total travel 0.118” (3.0mm)
- Materials & Finishes: Housing Polyamide UL94V-0; Movable contact Phosphor bronze with silver or gold flash plating; Stationary contacts similar materials
- Environmental Conditions: Operating temperature -25°C to +50°C; humidity 90 ~ 95% for 96 hours; vibration 10 ~ 55Hz; shock 50G

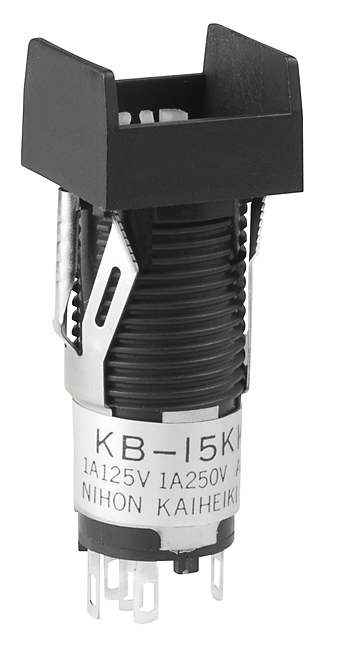

Buy the Buy NKK Miniature Pushbutton Switch Part Number KB15KKW01B Online
Enhance your control panel with the compact NKK miniature illuminated pushbutton switch. Featuring bright LED illumination, tactile feedback, and durability for extensive use, it’s perfect for industrial and electronic applications. Easy to mount and available with various LED colors and cap options, this switch assures reliable operation and clear visual indication. Order online today to benefit from swift delivery and trusted performance for your automation or control system needs.
Buy NKK KB15KKW01B now and experience unmatched reliability and performance with bright illumination and long-lasting operation.
Frequently Asked Questions
Where can I buy NKK Switches KB15KKW01B?
You can click on the BUY or RFQ button to purchase KB15KKW01B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB15KKW01B?
You can download the KB15KKW01B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB15KKW01B?
NKK Switches
