NKK Switches CKL12BTW01015 High Security Key Lock
The high-security key lock offers robust protection with solder lug terminals for reliable electrical connections, withstands static and environmental stresses, and features a rugged die-cast housing suitable for demanding security applications. Designed with high dielectric strength, it supports resistive loads up to 3A at 250V AC, providing long operational life with a minimum of 30,000 cycles. The lock employs high-quality materials such as nickel-plated brass, glass-filled PBT, and zinc alloy, and is suitable for industrial, security, and automation systems requiring durable, secure switching components.
NKK Switches CKL12BTW01015 High Security Key Lock Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts; 1,500V AC minimum between contacts and case
- Mechanical Cycles: 30,000 minimum
- Environmental Resistance: Operates from -25°C to +70°C with 90-95% humidity; vibration and shock resistance tested
- Material: Brass with nickel plating, glass fiber reinforced PBT, zinc alloy, copper with silver plating
- Bushing Sizes: 16mm and 19mm diameter
- Operating Temperature Range: -25°C to +70°C
- Vibration & Shock: 10-55Hz with 1.5mm amplitude, 50G acceleration for CKM, 30G for CKL

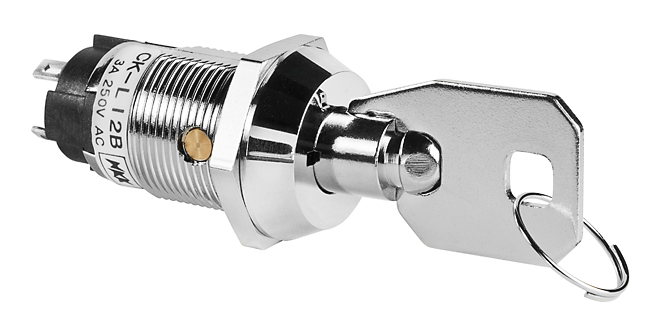

Buy the NKK Series CK High Security Keylocks: CKL12BTW01015
Enhance your security and electrical reliability with the high-security key lock featuring solder lug terminals. Designed for durability, it withstands harsh environmental conditions with a robust die-cast housing, supporting resistive loads up to 3A at 250V AC. Its high dielectric strength prevents voltage breakdowns, ensuring long operational life exceeding 30,000 cycles. Perfect for industrial, automation, and security systems, this lock's corrosion-resistant materials and precise manufacturing guarantee dependable performance, making it the ideal choice for critical security and control applications.
Buy NKK CKL12BTW01015 high-security key lock with solder lug terminals now and experience unmatched reliability and performance in demanding security applications.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BTW01015?
You can click on the BUY or RFQ button to purchase CKL12BTW01015 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BTW01015?
You can download the CKL12BTW01015 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BTW01015?
NKK Switches
