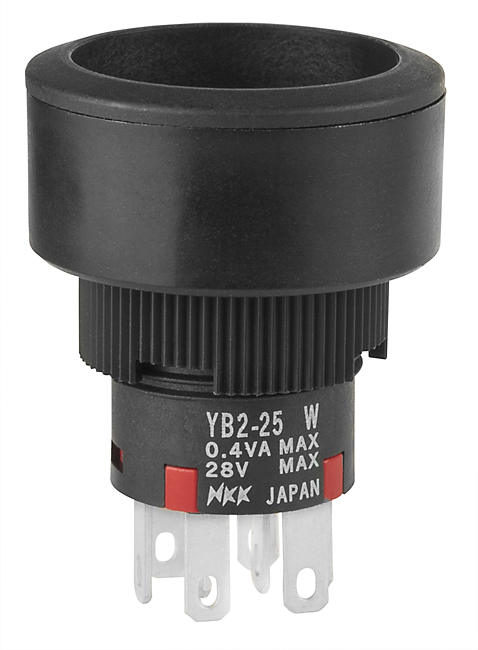

NKK Switches YB225CWCKG01 Pushbutton Switch
The YB2 series illuminated pushbutton switch features a standard size with a flush mount design, ideal for diverse control panels and applications. It offers easy activation, crisp tactile feedback, and integrated illumination options in multiple colors for enhanced visibility and functionality. Designed with durable materials and IP65 sealing, it withstands dust, splash, vibration, and shock, ensuring long-lasting operation. Suitable for industrial, automation, and control systems, this switch provides reliable performance with high electrical ratings, including 3A at 125/250V AC. Its robust construction ensures dependability in demanding environments.
NKK Switches YB225CWCKG01 Pushbutton Switch Specifications:
- Size: 22mm and 24mm pushbuttons with shortest above-panel dimension of 1.8mm
- Sealing: Meets IP65 of IEC60529 standards, dust tight and splashproof
- Electrical Capacity: 3A @ 125V AC or 3A @ 250V AC; 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations minimum; Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Material: Bezel - UL94V-0 glass fiber reinforced polyamide; Housing - UL94V-0 polycarbonate; Base - diallyl phthalate resin
- Terminals: Solder lug and quick connect (.110”/2.8mm), epoxy sealed for durability
- Mounting Torque: 0.785Nm (6.95 in.lbf) maximum
- Shock & Vibration: 50G acceleration, resistant to vibration per IEC standards
- Certifications: UL recognized, IEC60529 IP65 standard
- Color Options: Clear, red, green, amber, metallic silver, with illuminated or non-illuminated caps
- LED Options: Bright and super bright LEDs, multiple colors, with optional resistors for different voltages
Buy the NKK YB2 – Reliable Control Panel Switches for Industrial Applications
Order the NKK YB2 pushbutton switch online today to enhance your control panels with reliable, durable, and easy-to-activate switches. Featuring integrated illumination, IP65 sealing, and various color options, this switch is perfect for industrial and automation systems. Its proven durability ensures long-term performance with a high number of operations, whether for momentary or maintained circuits. Designed for easy installation with a compact profile, buy online now for fast delivery and immediate upgrade of your control solutions.
Get NKK YB2 switch today—built for precision and long-lasting durability in demanding control environments.
Frequently Asked Questions
Where can I buy NKK Switches YB225CWCKG01?
You can click on the BUY or RFQ button to purchase YB225CWCKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB225CWCKG01?
You can download the YB225CWCKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB225CWCKG01?
NKK Switches
