NKK Switches D22042B Miniature Toggle Switch
This is a PCB-mounted miniature toggle switch designed for compact electronic applications. It features a small form factor suitable for surface mounting on printed circuit boards, providing reliable on/off switching capabilities in tight spaces. The Series D2 toggle switches meet UL94V-0 flammability standards with heat-resistant resin bases, and are rated for 48V maximum voltage in low-current logic circuits. They boast a mechanical life of at least 50,000 operations, an insulation resistance of 1,000 megohms minimum, and contact resistance below 50 milliohms, ensuring durability and consistent performance in electronics. Suitable for space-constrained, low-current applications requiring precise switching.
NKK Switches D22042B Miniature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max at 48V AC/DC
- Contact Resistance: Max 50 milliohms
- Insulation Resistance: Min 1,000 megohms at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Contact Material: Phosphor bronze with gold plating
- Housing Material: Brass with chrome plating, UL94V-0 rated resin
- Operating Temperature Range: -10°C to +70°C
- Humidity Resistance: 90-95% for 240 hours at 40°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm, 2 hours in 3 directions
- Shock Resistance: 50G for 6 directions with 5 shocks each
- Soldering: Wave and manual soldering with specified profiles
- Certifications: UL94V-0 flammability rating, UL listed housing & base, no CSA certification
- Terminals: Round .031” (0.8mm) diameter PCB terminals, conforming to 0.100” (2.54mm) grid spacing
- Switch Type: Single Pole Double Throw, DPDT, ON-NONE-ON circuit, various actuators
- Max Voltage: 48V
- Temperature Range: -10°C through +70°C

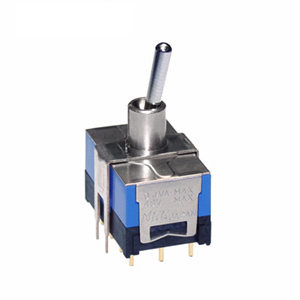

Buy the Buy NKK Series D2 PC Mount Miniature Toggle Switch Part Number D22042B Online
