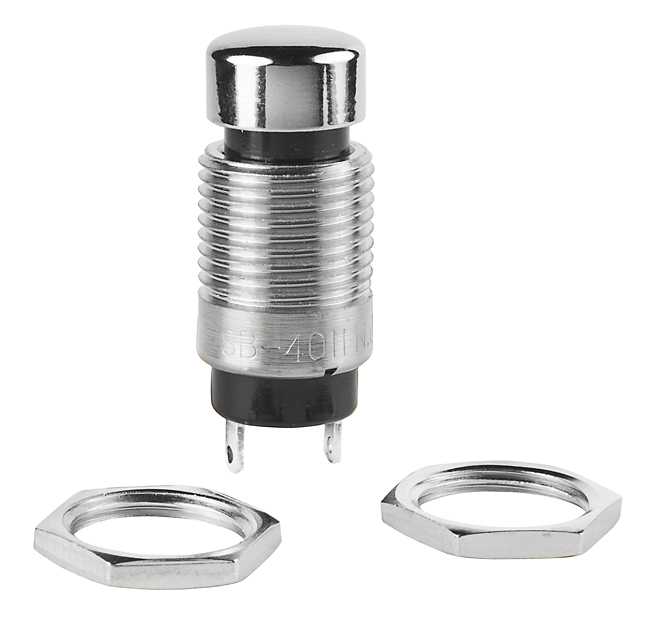

NKK Switches SB4011NOM24 Miniature Pushbutton Switch
A miniature pushbutton switch with a bright chrome panel mount cap, preassembled for easy installation. Suitable for various electronic and control applications, offering reliable momentary operation. It features silver contacts rated at 500mA at 125V AC and gold contacts with a 0.4VA max. at 28V AC/DC. Constructed with durable materials like brass with nickel plating and phenolic resin, it provides long mechanical and electrical life, ensuring dependable performance in control systems and electronic devices.
NKK Switches SB4011NOM24 Miniature Pushbutton Switch Specifications:
- Contact Materials: Silver, Gold
- Current Rating: 500mA at 125V AC; 0.4VA max. at 28V AC/DC
- Resistance: Silver contacts 30 milliohms max., Gold contacts 30 milliohms max.
- Insulation Resistance: 100 megohms min. @ 500V DC
- Dielectric Strength: 1,000V AC between contacts and case for 1 minute min.
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Temperature Range: 10°C to +70°C
- Material: Brass with nickel plating, phenolic resin, polyacetal plunger
- Total Travel: 0.065 inches (1.67mm), Pretravel 0.043 inches (1.1mm), Overtravel 0.022 inches (0.57mm)
Buy the Buy NKK SB Series Pushbutton Part Number SB4011NOM24 Online
Order the NKK SB4011NOM24 miniature pushbutton switch online today for reliable, easy-to-install control solutions. Featuring durable materials, silver and gold contacts, rated at 500mA/125V AC, and a bright chrome panel mount cap, this switch is suitable for various electronic applications. With a total travel of 0.065 inches and a long mechanical life of 50,000 operations, it ensures dependable performance in industrial, electronic, and control systems. Enjoy fast delivery and quality assured purchase now.
Get NKK SB4011NOM24 today—built for precision and long-lasting durability in electronic and control systems.
