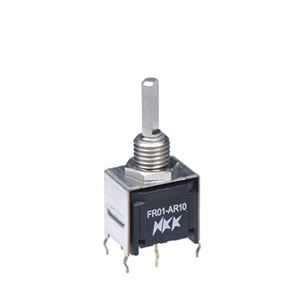

NKK Switches FR01AR10PBS DIP Rotary Switch
The FRO1 Series 10mm DIP rotary switch offers precise manual control for circuit configuration selection. Designed for low-voltage, low-current applications, it features robust construction with gold-plated contacts for reliable conductivity and a detent mechanism for crisp, positive feedback. The switch's compact form allows high-density mounting on PCBs, with options for screwdriver, dial, or metal shafts. Suitable for various environments, it supports wave and manual soldering, ensuring durability and ease of assembly in electronic devices and control systems.
NKK Switches FR01AR10PBS DIP Rotary Switch Specifications:
- Switching Rating: 100mA @ 5V DC, 100mA @ 50V DC
- Contact Resistance: Max 100 milliohms; 30 milliohms at contact point
- Insulation Resistance: Minimum 1,000 megohms @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 10,000 detent operations
- Electrical Life: 10,000 detent operations
- Nominal Operating Torque: 0.008-0.011Nm depending on actuator type
- Operating Temperature Range: -55°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration in multiple directions
- Material: Brass with nickel plating (metal shaft), glass fiber reinforced polyamide, polyoxymethylene, copper alloy with gold plating
- Soldering: Wave and manual soldering compatible, profile A recommended
- Packaging: Stick-tube with 25 or 50 switches depending on model
- Certifications: UL94V-0 compliant for actuator, housing, and base; designed for low energy circuits
Buy the NKK Series FRO1 DIP Rotary Switch: FR01AR10PBS
Order the NKK FRO1 Series DIP Rotary Switch online today to enjoy high-density mounting, reliable gold contact performance, and easy installation with a variety of actuators. Ideal for electronics and control systems, these switches support wave soldering, manual soldering, and are designed for long-lasting durability in low-voltage, low-current applications. Choose from screwdriver, dial, or metal shaft options, with packaging in convenient stick-tubes. Upgrade your circuit control solutions easily and efficiently by purchasing online now.
Get NKK FRO1 FR01AR10PBS today—built for precision with durable gold contacts and robust detent mechanism, perfect for reliable circuit configurations.
