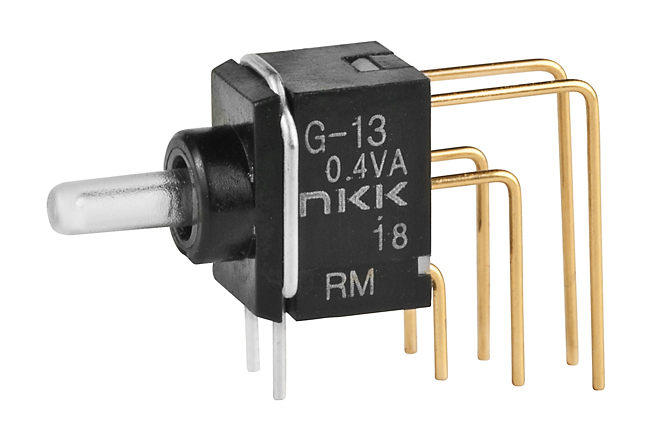

NKK Switches G13JVCF Illuminated Toggle Switch
This ultra-miniature illuminated toggle switch is perfect for PCB applications, providing high visibility with LED illumination in multiple colors. Its sealed body ensures contact protection against contamination, enabling automated soldering and cleaning processes. Designed for low-voltage, low-current logic circuits, it features a highly reliable, award-winning contact mechanism with smooth detent actuation. Constructed with durable polyamide and phosphor bronze, it operates within -25°C to +55°C, making it ideal for space-constrained electronic devices requiring reliable, long-lasting toggles with easy installation and maintenance.
NKK Switches G13JVCF Illuminated Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Nominal Operating Force: 1.30N
- Angle of Throw: 28°
- Actuator Material: Polyamide
- Case Material: Glass fiber reinforced polyamide
- Sealing Rings: Nitrile butadiene rubber
- Movable & Stationary Contacts: Phosphor bronze with gold plating
- Base & Power Terminals: Glass fiber reinforced polyamide
- Environmental Temperature Range: -25°C to +55°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-500Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Soldering & Cleaning: Wave, manual, and automated cleaning approved
- Standards & Certifications: Designed for low-voltage, low-current circuits, not UL or CSA recognized
