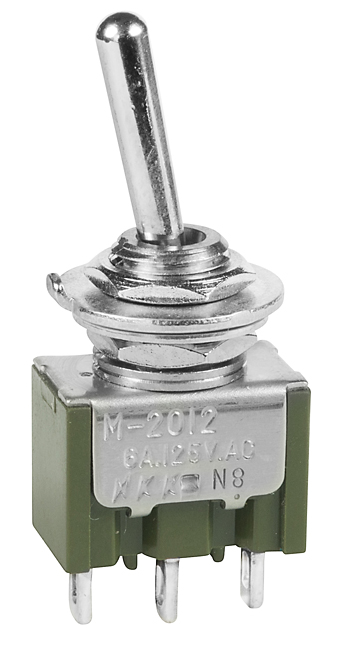

NKK Switches M2012SA1W01 Miniature Toggle Switch
This miniature toggle switch offers multi-function capabilities with a compact design, suitable for electronic devices requiring reliable switching options. It features high durability, multiple circuit configurations, and dual-rated contacts for power and logic applications. The switch's construction includes epoxy-sealed terminals for protection against contaminants, and it supports various bushing and bushing mount options. Designed for easy installation, it meets industry standards for safety and performance, making it ideal for control panels, instrumentation, and automation systems. It supports either single or multiple pole configurations for versatile switching functions.
NKK Switches M2012SA1W01 Miniature Toggle Switch Specifications:
- Poles & Circuits: 1-Pole, 2-Pole, 3-Pole, 4-Pole configurations available
- Contact Materials & Ratings: Silver over Silver 6A @ 125V AC & 3A @ 250V AC; Gold over Brass or Copper 6A @ 125V AC & 3A @ 250V AC
- Operating Temp Range: -30°C through +85°C
- Environmental Ratings:IP67 compliant splashproof bushing options, vibration resistance 10-55Hz, shock resistance 50G
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 to 100,000 operations depending on configuration
- Terminal Dimensions: 0.062” (1.57mm) wide, various lengths for PC and solder lug types
- Mounting Options: Bushing mount with 1/4-40 or M6 threaded bushings, panel thickness up to 0.047” (1.2mm)
- Standards & Certifications: UL Recognized, CSA Certified, compliant with flammability and dielectric standards
- Environmental Data: Operating temperature from -30°C to +85°C, vibration and shock resistant, IP67 splashproof options
- Terminals: Epoxy-sealed, solder lug, quick connect, with optional extended PC terminations for wiring flexibility
Buy the NKK Series M Miniature Toggle: M2012SA1W01
Purchase the NKK Series M miniature toggle switch online today for reliable operation in electronic devices and automation systems. This switch features epoxy-sealed terminals for protection, dual-rated contacts for power and logic circuits, and multiple pole configurations to suit diverse control needs. Its compact size allows easy integration into panels, with IP67 splashproof options ensuring durability in harsh environments. Designed for long life—up to 100,000 mechanical operations and 50,000 electrical cycles—secure your stock of this versatile switch now for seamless automation and control integration.
Get NKK Series M M2012SA1W01 miniature toggle switch today—built for reliability, versatility, and long-lasting performance in electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches M2012SA1W01?
You can click on the BUY or RFQ button to purchase M2012SA1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012SA1W01?
You can download the M2012SA1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012SA1W01?
NKK Switches
