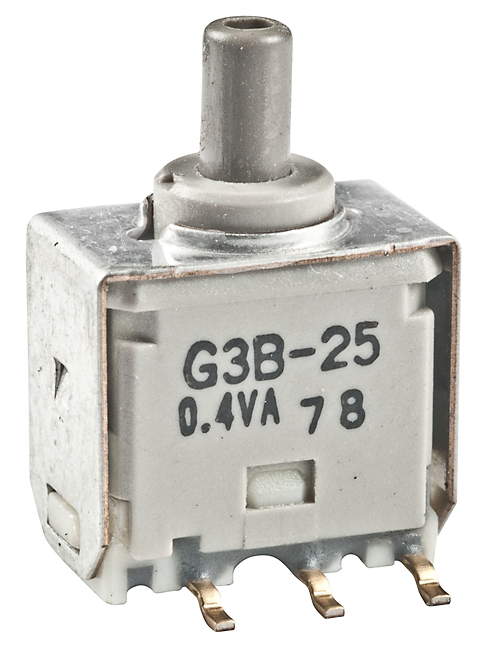

NKK Switches G3B25AP sealed SMT pushbutton
This ultra-miniature surface-mount pushbutton switch is engineered for compact electronic applications, offering high reliability in a small footprint. It features sealed construction, stainless steel and gold-plated contacts, and is suitable for high-density mounting in control panels, medical devices, and consumer electronics. Designed to withstand reflow soldering, it ensures consistent performance with a low contact resistance of 80 milliohms maximum at 500 megohms insulation resistance. Compatible with automated assembly, it provides a durable, sealed solution for low-voltage, low-current logic circuits.
NKK Switches G3B25AP sealed SMT pushbutton Specifications:
- Flammability Standard: UL94V-0
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 2.0N
- Travel: Pretravel 0.024” (0.6mm); Overtravel 0.019” (0.5mm); Total Travel 0.043” (1.1mm)
- Actuator & Base Material: Polyphenylene sulfide (UL94V-0)
- Sealing Rings Material: Nitrile butadiene rubber
- Contact Material: Phosphor bronze with gold plating
- Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-500Hz, peak-to-peak amplitude of 1.5mm in 1 minute
- Shock: 50G acceleration in multiple directions
- Operating Temperature Range: -30°C through +85°C
- Soldering: Reflow recommended, manual and automated cleaning compatible
- Mounting: Surface-mount, sealed design with gull-wing terminals
- Packaging: Tape-reel (500 pcs), Stick-tube (50 pcs), Partitioned tray
