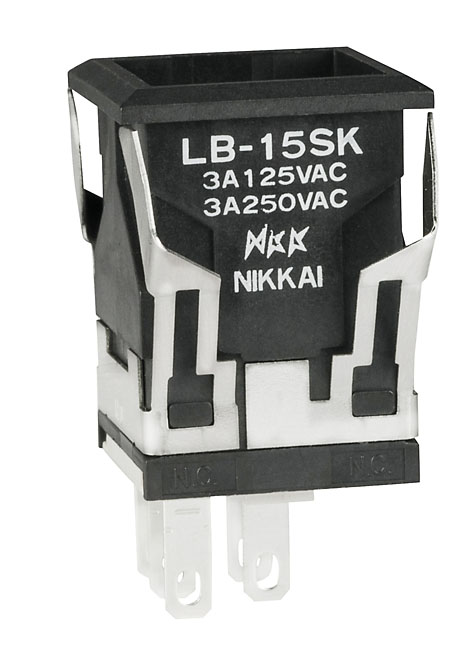

NKK Switches LB15SKW01 Illuminated Pushbutton Switch
This is a standard size illuminated pushbutton switch featuring a snap-in mounting mechanism designed for panel mounting applications. It provides easy actuation with a bright visual illumination indicator, ensuring clear visibility and reliable operation in various industrial and automation environments. The switch supports multiple LED color options, including red, green, blue, amber, and white, with both resistor and non-resistor options. Constructed from durable materials, it offers long electrical life and resistance to environmental factors. Suitable for control panels requiring illuminated signaling and quick, dependable activation.
NKK Switches LB15SKW01 Illuminated Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC, 250V AC, or 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained
- Nominal Operating Force: 4.9N maximum downward force on cap, 52.95N on connector
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Silver alloy or copper with gold plating, epoxy sealed
- Environmental Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Panel Seal: Meets IP65 (IEC60529), with optional splash covers
- Dimensions: Alignment with industry standards for switch size, panel cutout approximately 16.2mm x 16.2mm
- Standards & Certifications: UL, cULus, CSA recognized; recognized at 3A @ 125V / 250V AC; 0.4VA @ 28V AC/DC
Buy the Buy NKK Illuminated Pushbutton Switch Part Number LB15SKW01 Online
Enhance your control panels with the NKK Series LB illuminated pushbutton switch. Featuring bright LED indicators, durable construction, and a quick snap-in mount, this switch is ideal for industrial automation. Its wide environmental range ensures reliable operation in harsh conditions. Choose from various LED colors and resistor options for customization. Easy to install and maintain, it guarantees long electrical life and dependable performance, making it the perfect component to upgrade your control system with confidence and efficiency.
Order your NKK Series LB Illuminated Pushbutton Switch LB15SKW01 today and give your control panels reliable, easy-to-actuate visual signaling solutions.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW01?
You can click on the BUY or RFQ button to purchase LB15SKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW01?
You can download the LB15SKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW01?
NKK Switches
