NKK Switches GW12LCH Ultra-Thin Rocker Switch
The Ultra-miniature rocker switch is engineered for space-saving electronic devices, offering dependable on/off control in a compact size. Its design ensures reliable actuation and high contact stability, making it ideal for handheld equipment, low-voltage circuits, and densely populated PCBs. Constructed with UL94V-0 approved materials, it features epoxy sealed terminals to prevent contamination. With a maximum resistive load of 0.4VA @ 28V AC/DC, it withstands 50,000 cycles, supporting low-current logic applications while maintaining high reliability and safety standards.
NKK Switches GW12LCH Ultra-Thin Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC
- Contact Resistance: 80 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 50,000 operations
- Electrical Life: 50,000 operations
- Nominal Operating Force: 1.70N for Rockers, 1.30N for Paddles
- Angle of Throw: 28°
- Materials & Finishes: Actuator and case made from UL94V-0 glass fiber reinforced polyamide, terminals of phosphor bronze with gold or tin plating, sealing ring of Nitrile butadiene rubber
- Operating Temperature: -30°C to +85°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration Resistance: 3 directions, 2 hours each at 10-55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration in 6 directions
- Soldering: Wave and manual soldering profiles recommended; not process sealed; cleaning with alcohol-based solutions

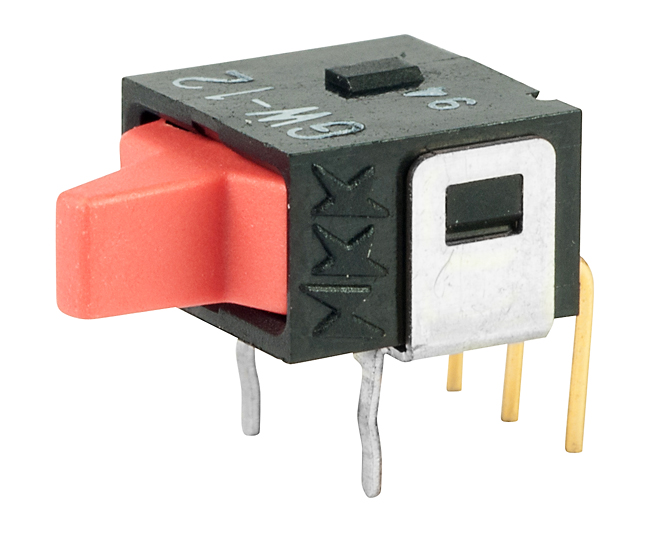

Buy the Buy NKK Ultra-Thin Rockers Part Number GW12LCH Online
Enhance your electronic projects with the reliable NKK Ultra-Thin Rocker Switch. Its miniature size makes it perfect for compact designs, offering durable operation with a smooth actuation mechanism. Constructed with UL94V-0 rated materials and epoxy sealed terminals, it ensures safety and contamination resistance. Suitable for low-voltage, low-current applications, this switch supports 50,000 cycles for long-term performance. Order online today to secure this compact, high-reliability control device for your professional or hobbyist electronic projects.
Order your NKK Series GW GW12LCH ultra-thin rocker switch today and enhance your device reliability with this space-efficient control component.
