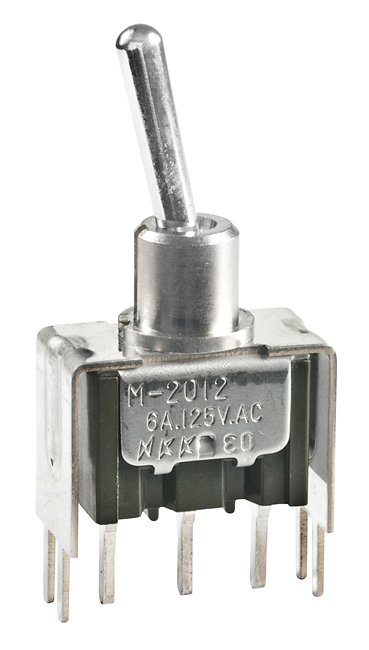

NKK Switches M2012SA2W13 Miniature Toggle Switch
This miniature toggle switch is designed for versatile applications in electronic devices and projects. It features an antirotation design with a flatted bottom to fit securely into bushings, high torque construction to prevent rotation during installation, and high insulating barriers for circuit isolation. The switch includes molded UL94V-0 diallyl phthalate cases, epoxy sealed terminals to prevent contamination, and features such as interlocked actuators for reliable operation, IP67 sealing options, and optional caps in multiple colors. Suitable for precise control in limited spaces, it offers durable performance with a mechanical life of at least 100,000 operations and ratings up to 6A at 125V AC.
NKK Switches M2012SA2W13 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC
- Logic Level (gold): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC contact to case for 1 minute
- Mechanical Life: Minimum 100,000 operations
- Electrical Life: 50,000 (silver), 100,000 (gold) operations
- Angle of Throw: Center off or specific to model
- Materials: Brass with chrome or nickel plating, stainless steel support, diallyl phthalate case
- Operating Temp Range: -30°C to +85°C
- Environmental Resistance: Vibration, shocks, and IP67 sealing options
- Mounting: Bracket PC mount with optional reinforced brackets
- Soldering: Wave or manual soldering compatible, with lever in OFF position during soldering
Buy the NKK Miniature Toggle Switch – Reliable Multi-Function for Industrial Applications
Purchase the miniature toggle switch online now to ensure high-quality, durable operation for your electronic projects. Designed for precision and reliability, this switch features antirotation design, high insulation barriers, and IP67 sealing options, making it suitable for tight spaces and industrial applications. With a mechanical life of over 100,000 cycles and ratings up to 6A at 125V AC, it guarantees dependable performance. Easy to install and solder, this switch is an essential component for robust electronic control in diverse environments.
Get NKK M2012SA2W13 today—built for precise control and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches M2012SA2W13?
You can click on the BUY or RFQ button to purchase M2012SA2W13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012SA2W13?
You can download the M2012SA2W13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012SA2W13?
NKK Switches
