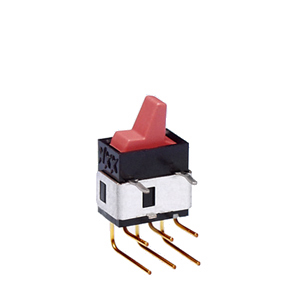

NKK Switches GW22LCH Ultra-Thin Rocker Switch
This ultra-thin rocker switch offers a compact, reliable solution for space-sensitive electronic devices, providing on/off control with durable construction. Designed with a small form factor, it features a smooth actuation mechanism, making it ideal for handheld equipment and high-density PCB mounting. The switch includes molded-in epoxy sealed terminals for protection against flux and contaminants, ensuring consistent performance. Its UL94V-0 rated actuator and case guarantee safety, while the switch's mechanical and electrical ratings support long-lasting operation in low-voltage, logic-level circuits suitable for various industrial and consumer applications.
NKK Switches GW22LCH Ultra-Thin Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.70N for rockers, 1.30N for paddles
- Angle of Throw: 28°
- Material Actuator & Case: Glass fiber reinforced polyamide (UL94V-0)
- Sealing Ring Material: Nitrile butadiene rubber
- Movable & Stationary Contacts: Phosphor bronze with gold/tin plating
- Terminal Material: Phosphor bronze with gold plating
- Environmental Resistance: -30°C to +85°C, 90-95% humidity for 240 hours
- Soldering: Wave and manual soldering profiles specified, not process sealed
Buy the Buy NKK Ultra-Thin Rockers Series GW Part Number GW22LCH Online
Enhance your electronic projects with the NKK ultra-thin rocker switch, designed for space-efficient installations and high reliability. Perfect for handheld devices, PCB mounting, and low-voltage logic circuits, this switch features sealed epoxy terminals for contamination resistance and a UL94V-0 rated actuator and case for safety. Its durable mechanical and electrical performance ensures long-term operation. Purchase online today to benefit from fast delivery, competitive pricing, and trusted quality, making your design processes more efficient and dependable.
Order your NKK Series GW ultra-thin rocker switch today and enjoy reliable on/off control for compact electronic applications with high durability.
