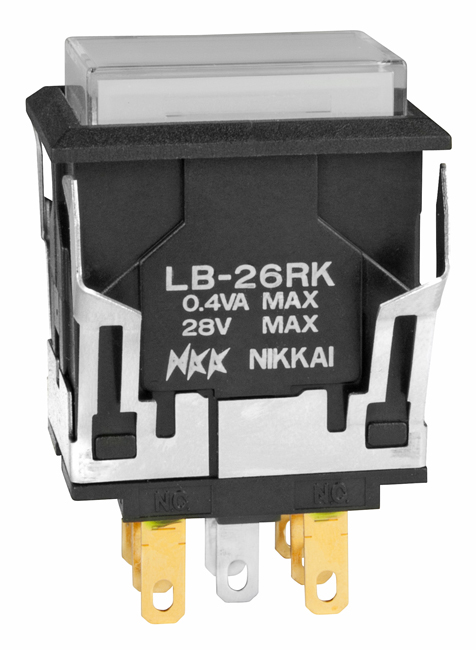

NKK Switches LB26RKG015C12JB Illuminated Pushbutton
Standard size illuminated pushbutton switch with snap-in mounting, designed for control panels and electronic applications. This switch features full surface illumination with LED options, reliable contact mechanism, and panel sealing up to IP65. It offers various LED color choices, including bright and super bright options, with resistor configurations for voltage compatibility. Constructed with durable materials like polycarbonate and stainless steel, it supports multiple mounting and wiring methods, ensuring dependable performance in industrial environments. Ideal for automation, machinery, and control systems requiring bright visual indicators and robust operation.
NKK Switches LB26RKG015C12JB Illuminated Pushbutton Specifications:
- Electrical Capacity: 3A @ 125V AC or 3A @ 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver; 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1000V AC min between contacts, 1500V AC min between contacts and case
- Mechanical Life: 1,000,000 operations min for momentary circuit, 200,000 for maintained circuit
- Nominal Operating Force: not specified, but described as smooth and responsive
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Materials: Housing - Glass fiber reinforced polyamide UL94V-0; Snap-in Frame - Stainless steel; Contact - Silver alloy or gold-plated copper; Base - Polycarbonate UL94V-0
- Environmental Data: Operating Temperature Range for illuminated -25°C to +50°C, for nonilluminated -25°C to +70°C; Humidity 95% for 96 hours @ 40°C; Shock resistance 50G
- Installation: Cap Installation Force 3.92N, Connector Force 52.95N, Soldering Time & Temp - manual soldering profiles specified
- Standards & Certifications: UL Recognized (File No. E44145), CSA Certified (File No. 023535_0_000), IEC IEC60529 IP65 panel seal
Buy the NKK LB26RKG015C12JB – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your control panel with the robust and luminous NKK illuminated pushbutton switch. Designed for durability and easy installation, it features full surface LED illumination in various colors, ensuring high visibility. Its panel sealing achieves IP65 standards for protected operation in harsh environments. Suitable for automation, machinery, and electronic systems, this switch offers reliable switch action with long mechanical life. Order online now to add dependable, visually distinctive controls to your industrial or electronics projects with quick delivery and competitive pricing.
Order your NKK Series LB26RKG015C12JB illuminated pushbutton today and give your projects the dependable performance they deserve.
Frequently Asked Questions
Where can I buy NKK Switches LB26RKG015C12JB?
You can click on the BUY or RFQ button to purchase LB26RKG015C12JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26RKG015C12JB?
You can download the LB26RKG015C12JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26RKG015C12JB?
NKK Switches
