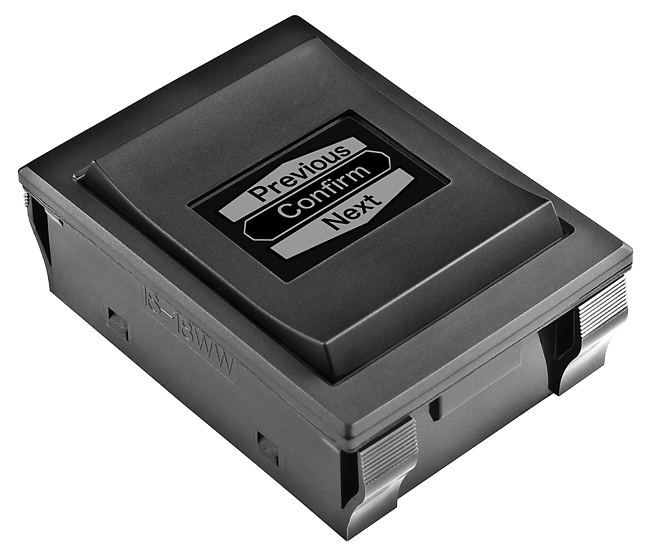

NKK Switches IS18WWC1W OLED Display Module
This 96x64 monochrome OLED display module features a rocker interface with a sharp, high-contrast visual output and compact design, ideal for control panels, industrial automation, medical devices, aerospace, and security systems. It offers IP64 dust and splash-proof protection, long-lasting OLED lifespan of 52,000 hours at 30% brightness, and interfaces via SPI serial communication. Easy to install with panel mounting, it supports graphical content, animations, and structured menu navigation, reliably serving applications in process control, manufacturing, robotics, and real-time data monitoring with high mechanical and electrical endurance of one million actuations.
NKK Switches IS18WWC1W OLED Display Module Specifications:
- Display Device: Single color OLED display
- Display Mode: Passive matrix
- Pixel Format: 96 x 64 pixels (horizontal x vertical)
- Pixel Size: 0.1mm x 0.177mm (horizontal x vertical)
- Interface: Serial (SPI)
- Color: White/Black (normally White)
- Protection: Conforms to IP64 standards on panel surface
- Display Brightness: 75 to 125 cd/m² depending on brightness setting
- Display Life Time: 52,000 hours at 30% brightness
- Operating Voltage VDDA: 2.7V - 3.6V
- Drive Voltage VAH: up to 15.5V
- Operating Temp: -20°C to +70°C
- Storage Temp: -25°C to +80°C
- Mechanical Endurance: 1,000,000 operations
- Electrical Endurance: 1,000,000 operations
- Physical Dimensions: 96 x 64 pixels, compact form with 14.6mm behind-panel depth
Buy the NKK OLED ROCKER – Reliable Visual Control for Industrial Applications
Purchase the NKK OLED Display Module today to elevate your project with a compact, high-contrast monochrome display featuring a rocker interface. Its IP64 protection ensures dust and splash resistance, perfect for industrial automation, medical, aerospace, and security applications. The module offers an impressive lifespan of 52,000 hours at 30% brightness, supporting graphical animations and structured menus for intuitive operation. Easy to install with snap-in panel mounting, it guarantees high reliability and durability, making it an ideal choice for demanding environments requiring consistent performance and long-term operation.
Order your NKK Series IS18WWC1W OLED ROCKER display today and enhance your control systems with reliable, high-contrast visuals and durable design.
Frequently Asked Questions
Where can I buy NKK Switches IS18WWC1W?
You can click on the BUY or RFQ button to purchase IS18WWC1W from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part IS18WWC1W?
You can download the IS18WWC1W datasheet or visit the NKK Switches website for support.
Who is the manufacturer of IS18WWC1W?
NKK Switches
