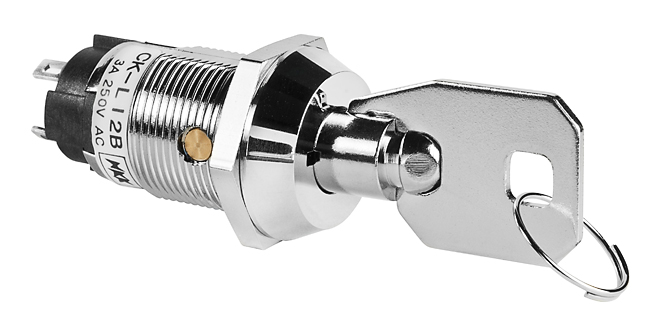

NKK Switches CKL12BTW01012 High Security Key Lock
The high security key lock features a solder lug connection for reliable and secure electronic applications. It includes a rugged die-cast housing designed for high-security needs and offers a key-removable mechanism with flat and tubular keys. Equipped with epoxy sealed terminals, it resists flux and contaminants, and provides high dielectric strength of 1,500 volts between contacts and case. The switch supports resistive loads up to 3A at 250V AC, with a minimum of 30,000 cycles, ensuring long-lasting durability in demanding environments. Its construction ensures excellent electrical performance and security features suitable for critical electronic systems.
NKK Switches CKL12BTW01012 High Security Key Lock Specifications:
- Electrical Capacity (Resistive Load): 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 10,000 cycles minimum
- Electrostatic Discharge: Withstands 15 kilovolts minimum (CKM models only)
- Bushing Diameter: 16mm for CKM models, 19mm for CKL models
- Operating Temperature Range: -25°C to +70°C
- Humidity: 90-95% for 240 hours at 40°C (CKM); 96 hours at 40°C (CKL)
- Vibration Resistance: 10-55Hz with a peak-to-peak amplitude of 1.5mm (CKM) or 0.7mm (CKL)
- Shock Resistance: 50G for CKM, 30G for CKL
- Material: Brass with nickel or chrome plating, glass fiber reinforced PBT, zinc alloy
- Contacts: Copper with silver plating
- Terminals: Solder lug connection
- Mounting Hardware: 16mm or 19mm hex mounting nut
Buy the Buy High Security Keylocks Series CK Part Number CKL12BTW01012 Online
Secure your electronic systems with the high security key lock featuring solder lug terminals, epoxy sealed contacts, and high dielectric strength. This rugged switch is designed for demanding environments requiring reliable operation, long cycle life, and enhanced security. It supports resistive loads up to 3A at 250V AC and withstands mechanical wear over 30,000 cycles. Ideal for secure electronic applications, it offers high dielectric and insulation resistance, ensuring optimal electrical performance and durability for critical industrial and control systems.
Buy High Security Keylocks CKL12BTW01012 now and experience unmatched security and long-lasting performance in critical electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BTW01012?
You can click on the BUY or RFQ button to purchase CKL12BTW01012 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BTW01012?
You can download the CKL12BTW01012 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BTW01012?
NKK Switches
