NKK Switches ISENGKIT5BC SmartSwitch Controller Kit

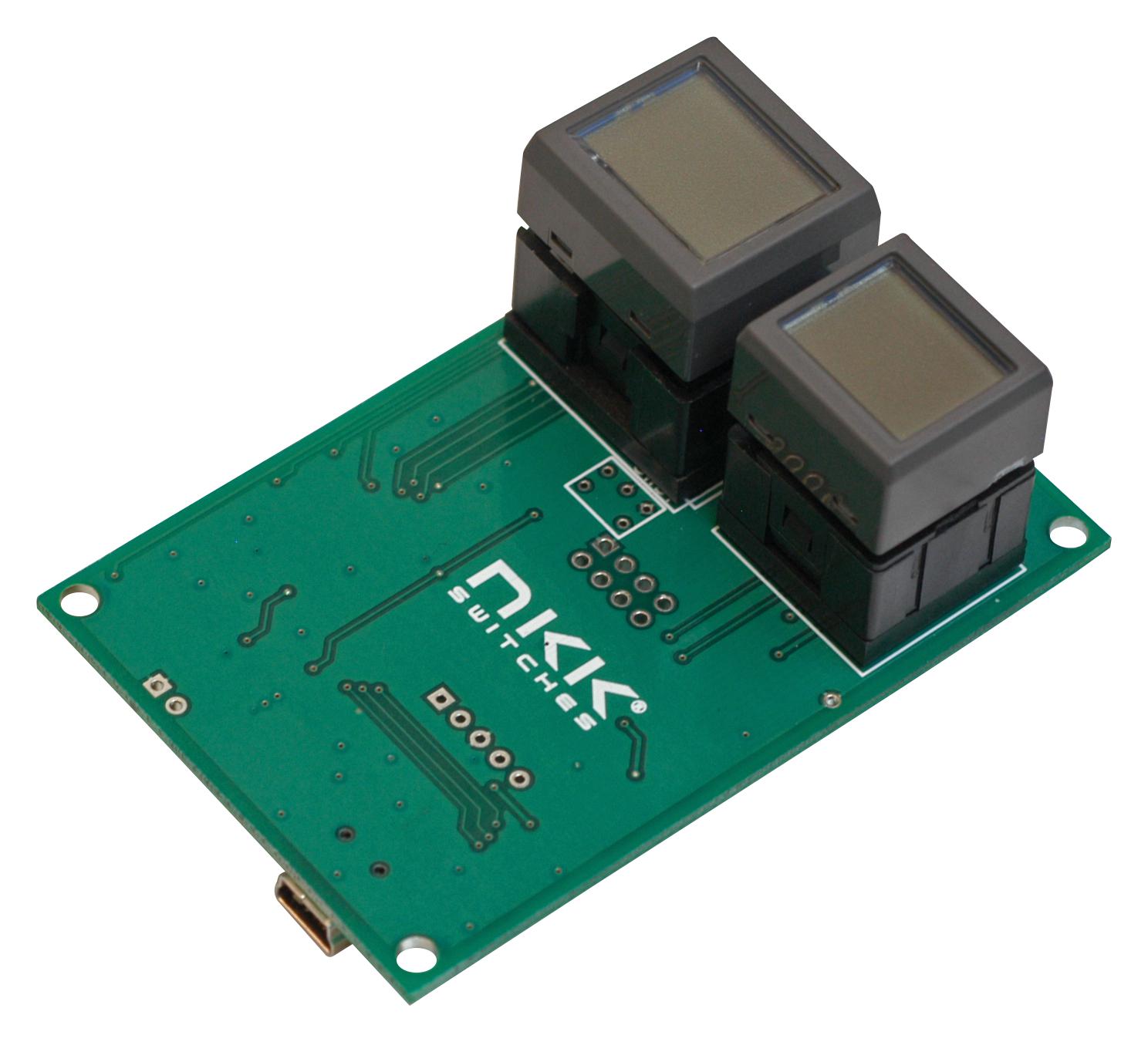

The IS-ENG-KIT-5-BC from NKK Switches is an engineering development kit for SmartSwitch® technology. It features two LCD displays—one standard 36x24 and one compact 36x24—controlled by the S0205 controller. The kit includes schematics, firmware, source code in C, on-board memory, and a USB interface for easy connection. It supports serial communication at 115.2K baud, has a 1MB onboard NOR flash memory for storing images and data, and provides a microcontroller auxiliary port with 7 I/O pins for user-defined applications. The system can operate both independently and in real-time, with pre-programmed basic functions. It reports switch events, timers, and displayed image addresses via USB, and is programmable to change images based on switch actions and timers. Compatible with a PICKIT3 debugger and pin adaptor, the kit can be powered either through USB or an optional 5V power supply. Maximum current consumption is 150mA at 5VDC.
NKK Switches ISENGKIT5BC SmartSwitch Controller Kit Specifications:
- Controller: S0205
- Displays: Standard 36x24 and Compact 36x24 LCD screens
- Backlight Options: RGB, Red/Green, Yellow/Green
- Onboard Memory: 1MB NOR Flash
- Serial Communication: USB (115.2K baud, 8N1)
- Power Supply: 4.5V to 5.5V, maximum 150mA
- Microcontroller: PIC18F46K40
- I/O Pins: 7 auxiliary port pins for custom applications
- Operating Modes: Stand-alone or real-time
- Programming: Compatible with PICkit3 debugger and pin adaptor
- Connectivity: USB interface with 6-foot USB 2.0 cable
- Additional Features: Supports images, attributes, switch event reporting, and programmable timers
