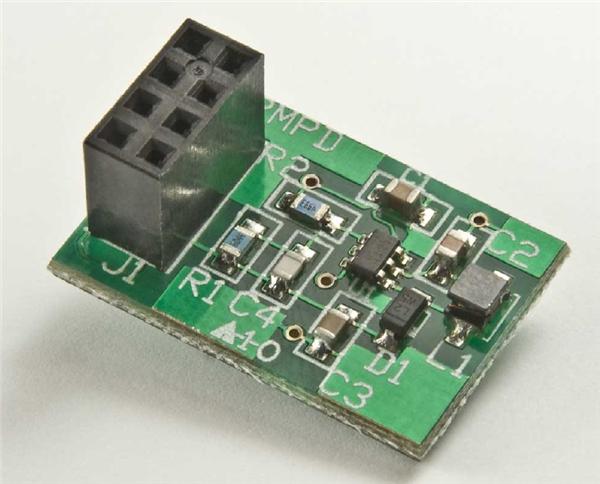

NKK Switches ISCHPMP Power Management Module
The IS-CHPMP is a compact, efficient power management device designed with a charge pump to convert input voltages from 2.7V to 5.5V into a stable 16V output. Compatible with OLED display applications, it uses Maxim’s MAX8574 step-up converter which provides floating output even during shutdown, enhancing circuit flexibility and energy efficiency. This RoHS-compliant module features dual shutdown inputs, a 2x4 header connection, and delivers high reliability for electronic projects and development testing, making it ideal for compact industrial and consumer electronic solutions.
NKK Switches ISCHPMP Power Management Module Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Voltage: 16V
- Floating Output: Supported during shutdown
- Shutdown Current: 0μA typical, 1μA max
- Pin Configuration: V3.3, V16, SHTDN, GND (x2)
- Connection: 2x4 header, 0.1 inch pitch
- RoHS Compliance: Yes
- Converter: Maxim MAX8574
- Power Consumption: Low quiescent current, suitable for battery-powered devices
- Designed for OLED display driving and power circuit development
- Includes protective features and supports high reliability applications
- Form factor: Compact development tool suitable for prototyping and testing
Buy the Buy NKK Switches Power Management IC Part Number ISCHPMP Online
Enhance your electronic projects with the NKK Switches power management module. Designed for efficiency and reliability, it converts 2.7V to 5.5V DC to a stable 16V output, ideal for OLED displays. Featuring a MAX8574 step-up converter, floating output mode, compact size, and dual shutdown inputs, this RoHS-compliant device reduces power consumption and improves circuit flexibility. Perfect for development, testing, and integration into small-scale and industrial electronic systems, ensuring seamless performance and dependable power management.
Buy NKK Switches ISCHPMP now and experience high-efficiency power conversion for OLED displays and development testing.
Frequently Asked Questions
Where can I buy NKK Switches ISCHPMP?
You can click on the BUY or RFQ button to purchase ISCHPMP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ISCHPMP?
You can download the ISCHPMP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ISCHPMP?
NKK Switches
