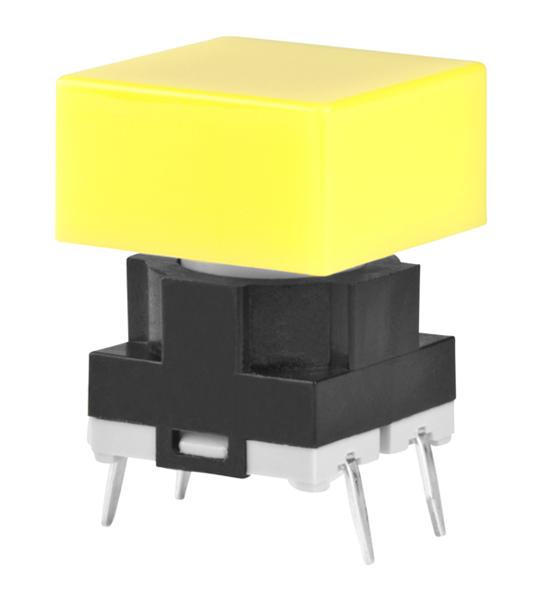

NKK Switches JB15HAP2E Sealed Tactile Switch
The JB15HAP2E is a compact, low-profile tactile push-button switch designed for professional electronic circuits. It features a sealed construction with rubber seals preventing contact contamination and enabling automated soldering and cleaning processes. The switch provides crisp tactile feedback with a long operating life of up to 5,000,000 operations, making it ideal for space-constrained applications in low-voltage, low-current logic circuits. Constructed with durable materials like polycarbonate and stainless steel, this switch offers reliable performance across a temperature range of 25°C to +70°C and IP67 sealing for harsh environments.
NKK Switches JB15HAP2E Sealed Tactile Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC maximum for Standard Operating Force, 125mA @ 24V DC maximum for High Operating Force
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15, 2.65N for JB1SH
- Total Travel: 0.012" (0.300mm)
- Actuator Material: Polycarbonate, Matte finish
- Case Material: Polycarbonate, Glossy finish
- Sealing: IP67 (IEC60529)
- Operating Temperature Range: -13°F to +158°F (-25°C to +70°C)
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm for 2 hours
- Shock: 50G acceleration in 6 directions
- Terminals: Slanted, conform to .100" (2.54mm) PCB spacing
- Soldering: Wave and manual soldering recommended
- Certifications: UL9AV-0 rated case and base, RoHS compliant
