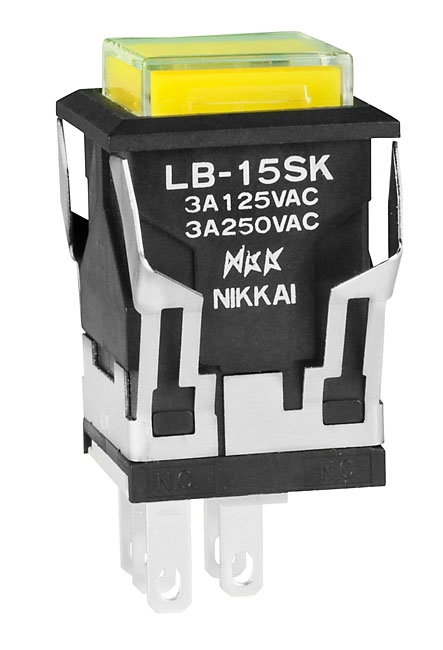

NKK Switches LB15SKW0101JE Standard Size Illuminated Pushbutton Switch
This is a standard-sized illuminated pushbutton switch designed for easy snap-in installation, suitable for various electronic and electrical applications requiring push-actuated, illuminated control with long electrical life and tactile feedback.
NKK Switches LB15SKW0101JE Standard Size Illuminated Pushbutton Switch Specifications:
- Power Level (silver): 3A @ 125V AC or 3A @ 250V AC
- Logic Level (gold): 0.4VA @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Electrical Life: 200,000 operations minimum for maintained circuit
- Nominal Operating Force: 4.0 N maximum downward force on cap
- Contact Timing: Nonshorting (break-before-make)
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Housing: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Silver alloy or copper with gold plating
- Material: Phosphor bronze with silver or gold plating
- Operating Temperature Range: -25°C through +50°C for illuminated, -25°C through +70°C for non-illuminated
- Environmental: 90-95% humidity for 96 hours @ 40°C; vibration 50G acceleration in multiple directions
- Standards & Certifications: UL Recognized, CSA Certified, recognized at 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
