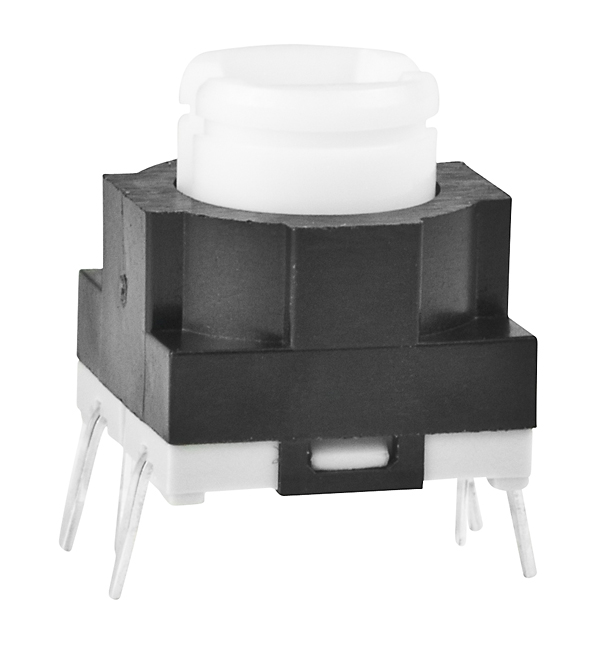

NKK Switches JB15HBPF Illuminated Tactile Switch
The JB15HBPF is a low-profile illuminated tactile switch designed for PCB mounting in compact electronic devices. It provides crisp tactile feedback through its dome contact and features bright, full-face illumination with red, green, or yellow LEDs. Constructed with sealed rubber contacts and a sturdy polycarbonate case, it ensures contact contamination prevention and long operational life up to 5 million cycles. Suitable for low-voltage, low-current applications, it offers high reliability, quick soldering, and automated cleaning compatibility, ideal for user interface controls requiring visual indication and tactile response.
NKK Switches JB15HBPF Illuminated Tactile Switch Specifications:
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (standard), 2.65N (high)
- Total Travel: 0.254mm (short actuator), 0.300mm (extended actuator)
- Actuator Material: Polyacetal (short), Glass fiber reinforced PBT (extended)
- Case Material: Polycarbonate (UL94V-0 rated)
- Seal: Rubber B
- Base Material: Glass fiber reinforced PBT
- Movable Contacts: Stainless steel
- Stationary Contacts: Brass with silver plating
- Terminals: Frontal snap-on, conforming to .100” (2.54mm) PCB grid
- Operating Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration Resistance: 10-55Hz, amplitude 1.5mm for 2 hours
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering recommended with Profile A, manual soldering in accordance with Profile A
- Cleaning: Automated cleaning as per specifications
- Flammability Standards: UL94V-0 rated case and base
