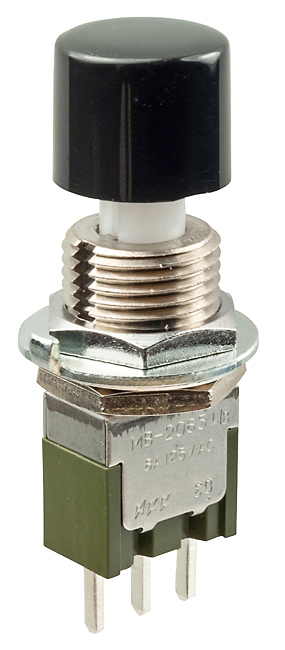

NKK Switches MB2065SB1W02DA Miniature Pushbutton Switch
The MB2065SB1W02DA is a miniature pushbutton switch featuring multi-function capabilities ideal for compact electronic applications. It is designed for front panel mounting and offers reliable switching performance with a 6-Amp rating at 125V AC and ON-ON circuit configuration. The switch includes solder lug terminals for secure connections, and its durable construction ensures dependable operation in control panels, machinery, and equipment. Its high-quality materials and precise engineering make it essential for numerous electronic and automation systems demanding compact yet robust control components.
NKK Switches MB2065SB1W02DA Miniature Pushbutton Switch Specifications:
- Poles & Circuits: SPDT ON-ON
- Contact Material: Silver over Silver
- Rating: 6A @ 125V AC
- Terminal Type: Solder Lug
- Mounting: Front panel
- Diameter: 12mm threaded bushing with keyway
- Plunger Type: Plastic for B1 bushing, metal for B3 bushing
- Maximum Panel Thickness: 0.217" (5.5mm)
- Operating Life: 10,000 cycles (momentary), 30,000 cycles (alternate action)
- Body Material: Polycarbonate
- Cap Colors Available: Black, White, Red, Green, Blue, Gray
- Cap Diameter: 8.0mm to 19.0mm options
- Cap Material: Polycarbonate with glossy finish
- Mounting Shroud: Round or Rectangular, material Polycarbonate
- Accessories: Includes screw adaptors and optional splashproof boot
- Certifications: Not specified (order with markings for UL, CSA)
- Environmental: Suitable for typical industrial conditions
- Applications: Electronic control panels, machinery, automation systems
Buy the Buy NKK MB2065SB1W02DA Part Number MB2065SB1W02DA Online
Order the NKK MB2065SB1W02DA miniature pushbutton switch online today. Designed for reliable performance with a 6Amp rating at 125V AC, featuring solder lug terminals for secure connections. Its compact size and durable polycarbonate body make it ideal for electronic control panels, machinery, and automation systems. Easy to install with front panel mounting options, this switch offers multi-function capabilities with various cap colors and shrouds. Ensure your systems operate smoothly and efficiently by choosing this high-quality control component for all your electronic and industrial applications.
Buy NKK MB2065SB1W02DA now and experience unmatched reliability and performance for compact electronic controls and automation needs.
Frequently Asked Questions
Where can I buy NKK Switches MB2065SB1W02DA?
You can click on the BUY or RFQ button to purchase MB2065SB1W02DA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065SB1W02DA?
You can download the MB2065SB1W02DA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065SB1W02DA?
NKK Switches
